Phoenix Contact PLH 16 6-10 Data Handbook/Specifications Guide
Summary
This professional terminal block features a spring-cage connection system, ideal for reliable electrical connections requiring soldering for assembly. Rated for 400V nominal voltage and featuring six positions with a 10mm pitch, it ensures robust performance in industrial wiring applications. The accompanying manual provides comprehensive documentation, including detailed technical drawings, cross-section requirements (solid/stranded conductors), and electrical specifications necessary for electricians and engineers to guarantee safe and efficient circuit assembly.
Page 1 Text Content
Extract from the online catalog

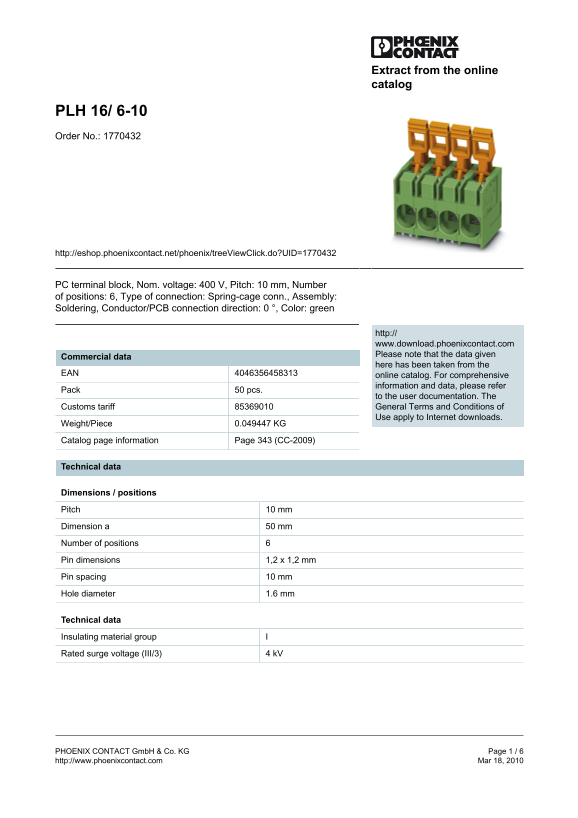

PLH 16/ 6-10 Order No.: 1770432
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770432
PC terminal block, Nom. voltage: 400 V, Pitch: 10 mm, Number of positions: 6, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
http:// www.download.phoenixcontact.com Please note that the data given
Commercial data
here has been taken from the
EAN online catalog. For comprehensive
information and data, please refer
Pack 50 pcs.
to the user documentation. The Customs tariff General Terms and Conditions of Use apply to Internet downloads.
Weight/Piece 0.049447 KG Catalog page information Page 343 (CC-2009)
Technical data
Dimensions / positions Pitch 10 mm Dimension a 50 mm Number of positions Pin dimensions 1,2 x 1,2 mm Pin spacing 10 mm Hole diameter 1.6 mm
Technical data Insulating material group Rated surge voltage (III/3) 4 k V
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
