This robust PC terminal block is designed for industrial control systems, providing reliable connections up to 24A at 320V. The comprehensive technical documentation covers detailed electrical standards, including connection data for solid or stranded conductors with ferrules. It also features dimensional drawings and includes UL/CUL certifications, ensuring suitability for complex PCB designs and professional automation applications. Essential for engineers and technicians building reliable industrial setups.

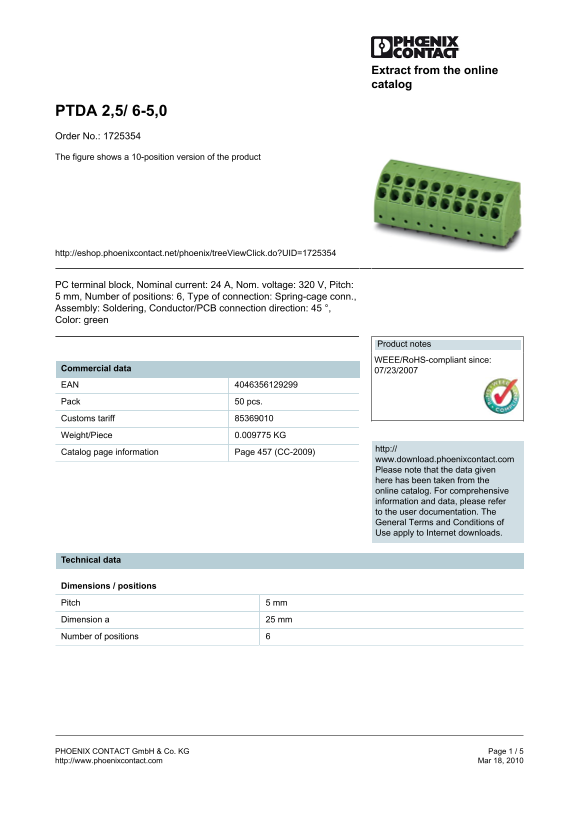

Page 1 Text Content
Extract from the online catalog
PTDA 2,5/ 6-5,0 Order No.: 1725354 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1725354
PC terminal block, Nominal current: 24 A, Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 6, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/23/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.009775 KG
http://
Catalog page information Page 457 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 25 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PTDA 2.5, 6-5.0 Data Handbook / Specifications
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 131.96 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current capacity of this terminal block?
The nominal current, $I_N$, is 24 A, and the nominal voltage, $U_N$, is 320 V.
What are the acceptable ranges for solid conductor cross sections?
Solid conductors must be between a minimum of 0.2 mm² and a maximum of 2.5 mm².
Does this product comply with WEEE or RoHS standards?
Yes, it is noted as WEEE/RoHS-compliant in the documentation.
What type of connection does the terminal block use?
It utilizes a spring-cage connection and requires soldering for assembly.
