Phoenix Contact PT 2.5 7- PVH-5.0 Data Sheet
Summary
This modular PC terminal block is designed for reliable electrical connectivity in control and power systems. Featuring 7 positions with a 5 mm pitch and rated for up to 13.5 A at 250 V, it offers secure, screw-type connections suitable for standardized industrial applications. This resource provides comprehensive technical data, including conductor cross-section limits (solid and stranded), insulation details, and compliance standards like UL/CUL certification. Ideal for electrical engineers, system designers, and technicians requiring high-quality components for safety-critical wiring assemblies.
Page 1 Text Content

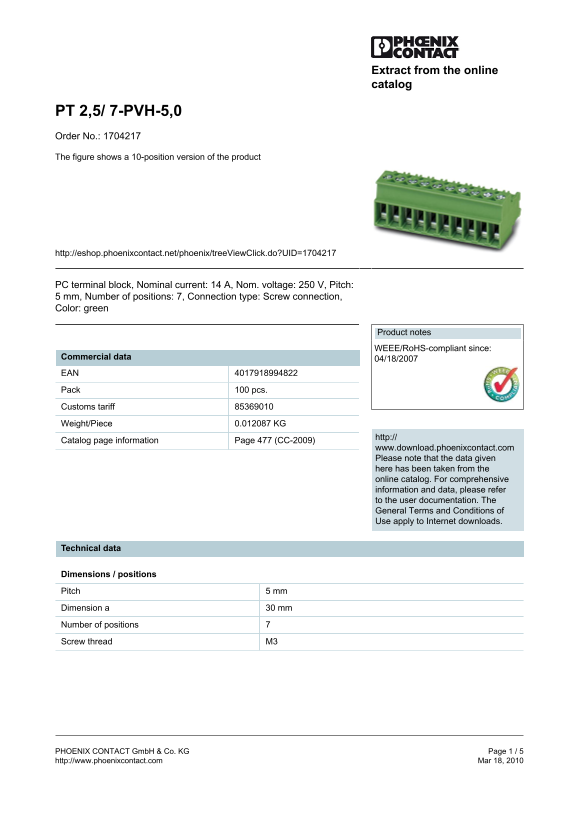

Extract from the online catalog
PT 2,5/ 7-PVH-5,0 Order No.: 1704217 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704217
PC terminal block, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 7, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.012087 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 30 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
