Phoenix Contact PT 1.5 3-PVH-5.0 User Guide and Manual
Summary
This modular terminal block component provides reliable and secure electrical connections, rated for up to 12A at 250V using durable screw terminals. Designed for industrial automation and control panel applications, it ensures standardized wiring compliance (UL/CSA approved). The accompanying documentation offers comprehensive technical data, including dimensional specifications, detailed conductor compatibility charts (solid and stranded), necessary installation tools, and electrical safety ratings required for system designers, electrical engineers, and maintenance professionals seeking robust component solutions.
Page 1 Text Content

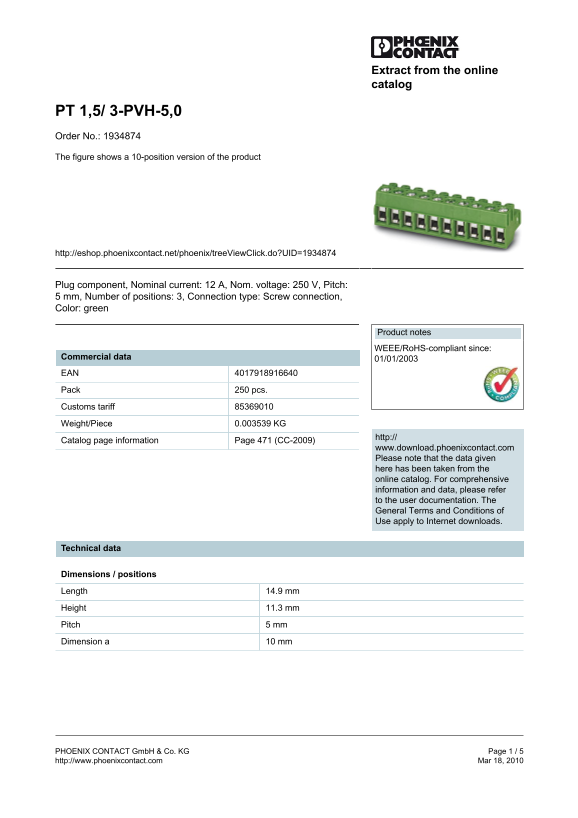

Extract from the online catalog
PT 1,5/ 3-PVH-5,0 Order No.: 1934874 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1934874
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.003539 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.9 mm Height 11.3 mm Pitch 5 mm Dimension a 10 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
