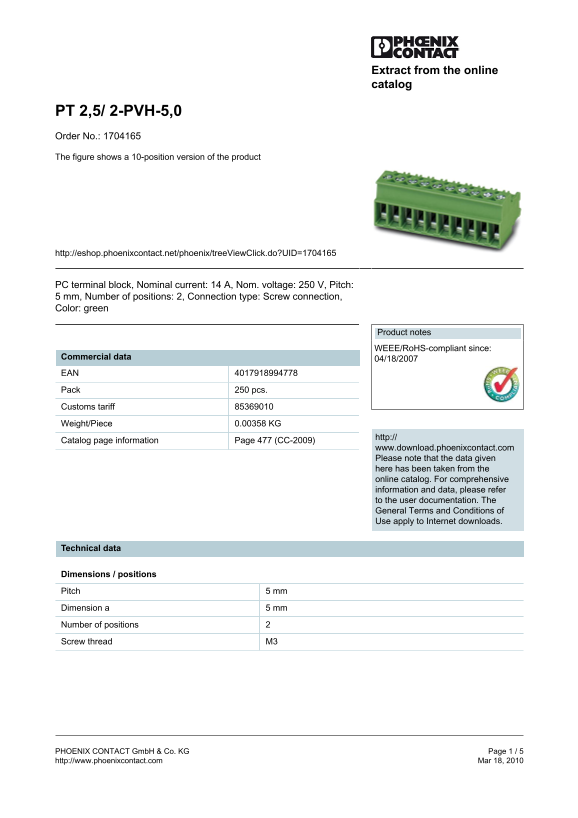

Extract from the online catalog
PT 2,5/ 2-PVH-5,0 Order No.: 1704165 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704165
PC terminal block, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 2, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2007 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.00358 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 5 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
