Phoenix Contact PT 2.5 4-PVH-5.0 Data Sheet
Summary
This reliable PC terminal block is designed for secure electrical connections, rated for up to 14A at a nominal voltage of 250V across four positions with a 5mm pitch. The comprehensive documentation serves industrial automation professionals and engineers by providing exhaustive technical specifications. Key details covered include compatibility guidelines for various solid and stranded conductors, UL/CUL compliance data, and precise connection parameters essential for professional circuit design and installation planning.
Page 1 Text Content
Extract from the online catalog

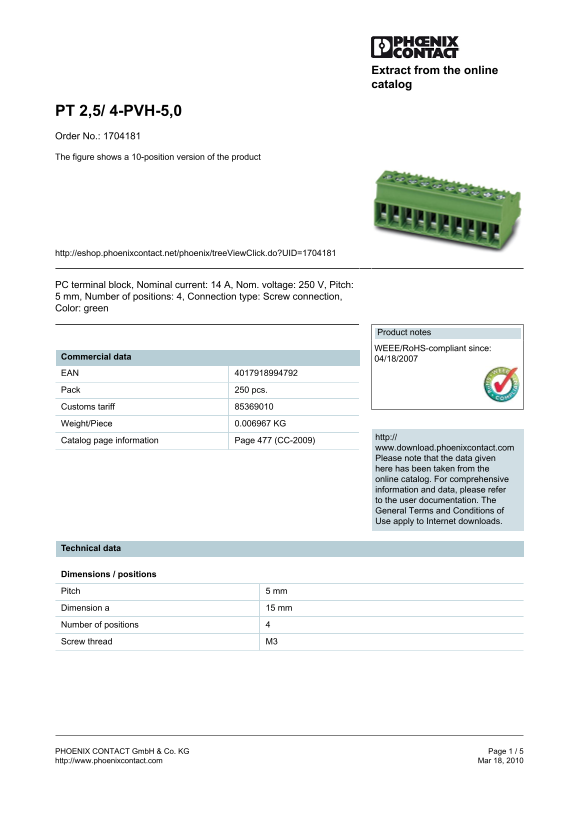

PT 2,5/ 4-PVH-5,0 Order No.: 1704181 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704181
PC terminal block, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 4, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2007 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.006967 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 15 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
