Phoenix Contact - PT 1.5/5-5-PVH-5.0 Data Handbook
Summary
This essential plug component is a robust terminal block used for professional electrical connections, rated for 12A at 250V and featuring flexible screw connections/multiple terminal positions. This comprehensive manual provides critical technical documentation, including dimensional specifications, detailed wiring guides (supporting various wire cross-sections), safety ratings, compliance certifications, and accessory information. It is designed for electrical engineers, automation professionals, and industrial maintenance personnel requiring reliable, standards-compliant components for panel building and secure circuit integration.
Page 1 Text Content
Extract from the online catalog

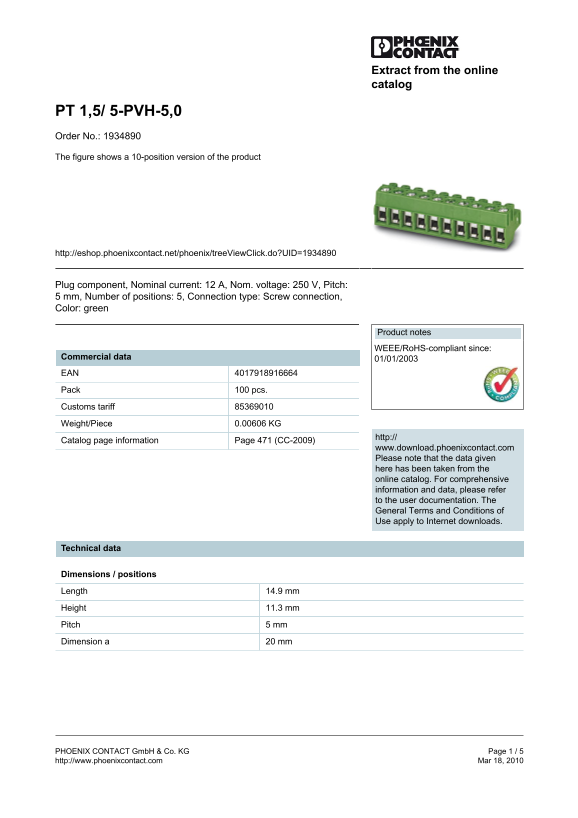

PT 1,5/ 5-PVH-5,0 Order No.: 1934890 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1934890
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 5, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.00606 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.9 mm Height 11.3 mm Pitch 5 mm Dimension a 20 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
