Extract from the online catalog

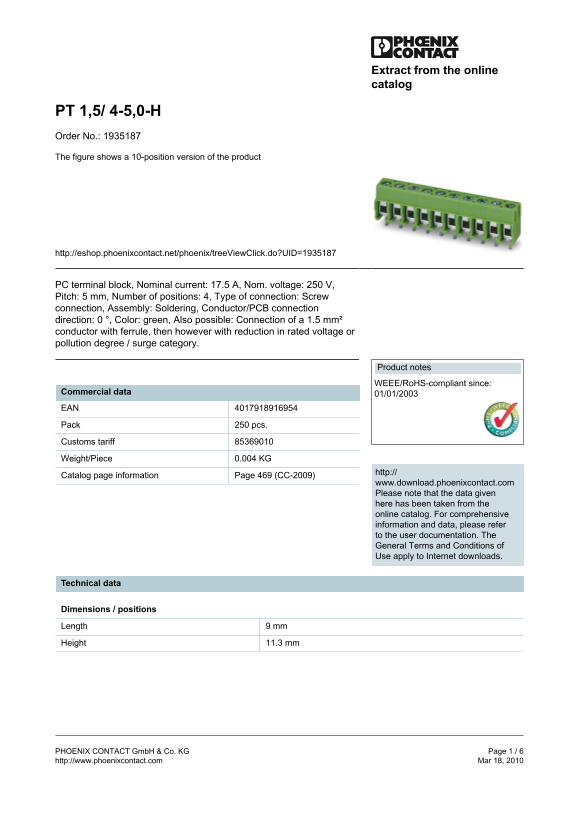

PT 1,5/ 4-5,0-H Order No.: 1935187 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1935187
PC terminal block, Nominal current: 17.5 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 4, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Also possible: Connection of a 1.5 mm² conductor with ferrule, then however with reduction in rated voltage or pollution degree / surge category.
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.004 KG
http://
Catalog page information Page 469 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9 mm Height 11.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
