This robust PC terminal block provides a high-capacity, solder-assembled electrical connection solution with an 8-position layout and 5mm pitch. Rated for up to 17.5 A at 250 V, it ensures reliable connections in critical circuits. The accompanying manual is essential documentation for engineers and technicians, providing comprehensive technical specifications, detailed dimensional drawings, conductor compatibility charts, and accessory guides needed for professional installation across industrial control systems and electronic assemblies.
Page 1 Text Content
Extract from the online catalog

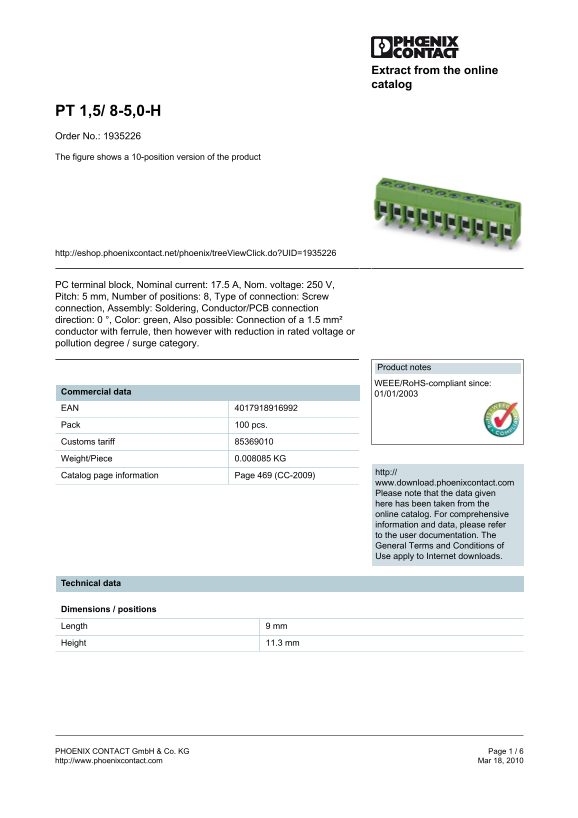

PT 1,5/ 8-5,0-H Order No.: 1935226 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1935226
PC terminal block, Nominal current: 17.5 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 8, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Also possible: Connection of a 1.5 mm² conductor with ferrule, then however with reduction in rated voltage or pollution degree / surge category.
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.008085 KG
http://
Catalog page information Page 469 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9 mm Height 11.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
