Phoenix Contact PT 1.5 4-Ph-3.5 Data Sheet
Summary
This screw connection terminal block provides a reliable, high-density junction point with specifications including 8A nominal current and a 3.5 mm pitch. The accompanying manual offers comprehensive technical documentation necessary for professional installation, detailing dimensions, supported wire cross-sections (solid/stranded), full electrical ratings, compatibility accessories, and all relevant safety certifications (UL/CSA). Essential reading for automation engineers, industrial technicians, and system integrators designing durable and efficient electrical control systems.

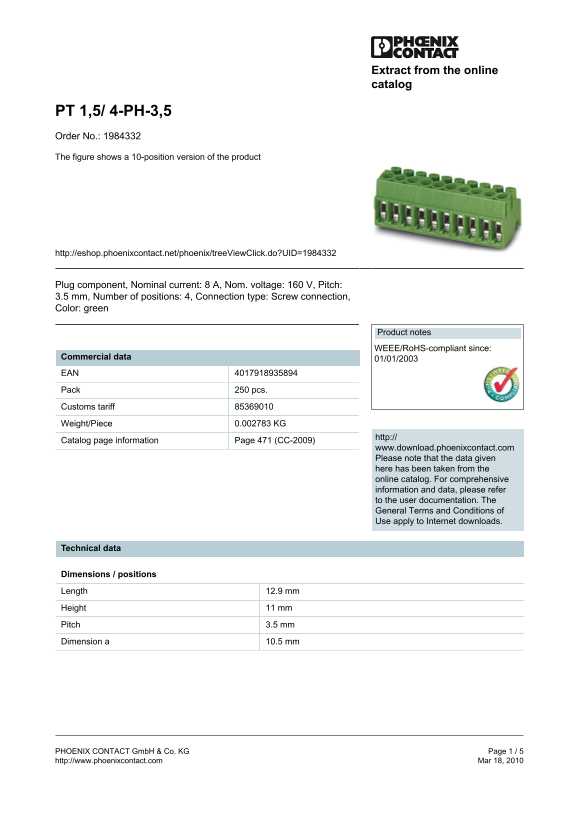

Page 1 Text Content
Extract from the online catalog
PT 1,5/ 4-PH-3,5 Order No.: 1984332 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1984332
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 4, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.002783 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 12.9 mm Height 11 mm Pitch 3.5 mm Dimension a 10.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PT 1.5 4-Ph-3.5 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 115.54 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How many screw positions does the PT 1,5/ 4-PH-3,5 module have?
It has a number of positions equal to four.
What are the acceptable conductor cross sections for solid wires?
The minimum range is 0.2 mm² and the maximum is 1.5 mm².
What certifications does this product possess regarding environmental compliance?
It is WEEE/RoHS-compliant, along with CCA, CUL, SEV, and UL CUL certifications.
Are any specific tools needed for connecting wires to this terminal block?
The required tool listed is a bladed screwdriver (1205037 SZS) designed up to 1.5 mm² cross sections.
