Phoenix Contact PTSA 1.5 6-3.5- Z Data Sheet
Summary
This detailed manual provides comprehensive technical specifications for a reliable PC terminal block, ideal for professional electrical connections. Designed with spring-cage technology, this component ensures robust assembly for various wiring systems. The document covers critical data points including electrical ratings (up to 630V), maximum load current, permissible conductor cross-sections, physical dimensions, and compliance information (RoHS/WEEE). It is essential reading for engineers, technicians, and designers requiring certified components for secure and durable PCB wiring solutions.
Page 1 Text Content

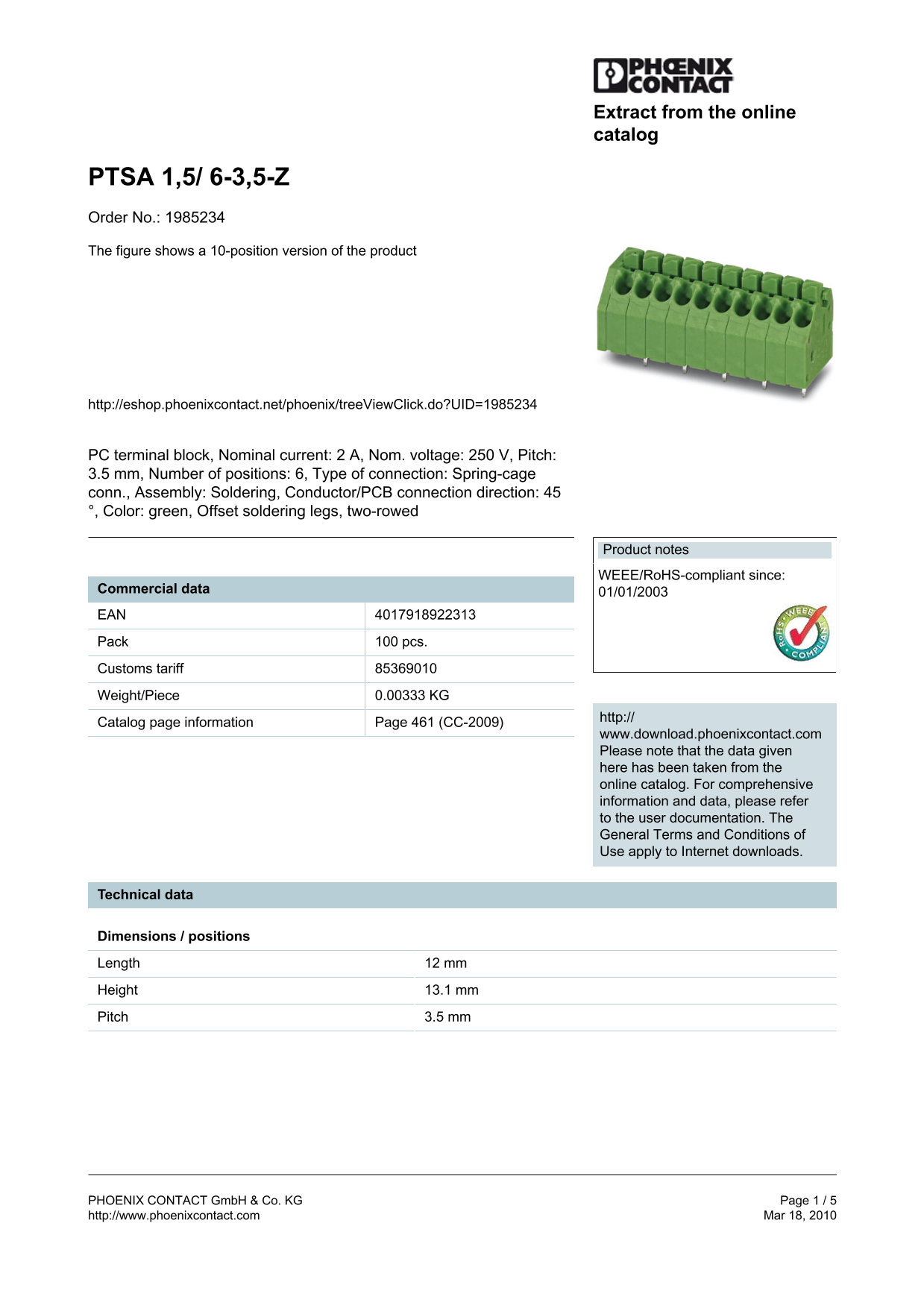

Extract from the online catalog
PTSA 1,5/ 6-3,5-Z Order No.: 1985234 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1985234
PC terminal block, Nominal current: 2 A, Nom. voltage: 250 V, Pitch: 3.5 mm, Number of positions: 6, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.00333 KG
http://
Catalog page information Page 461 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 12 mm Height 13.1 mm Pitch 3.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
