Phoenix Contact PTSA 0.5 4-2.5- Z Data Sheet/Manual
Summary
The PTSA series terminal block is a reliable component for electrical interconnection, featuring spring-cage connections and robust performance up to 2A at 160V. This technical guide provides comprehensive specifications, including detailed installation dimensions, wiring diagrams, and required compliance data (UL/CSA). It is essential reading for professional electricians, automation engineers, and industrial system designers requiring dependable, scalable connectivity solutions in control panels and machinery.

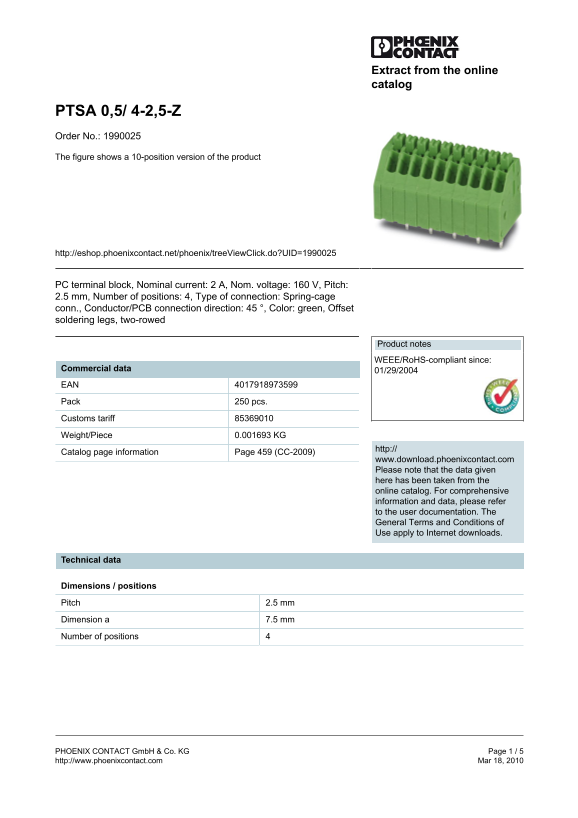

Page 1 Text Content
Extract from the online catalog
PTSA 0,5/ 4-2,5-Z Order No.: 1990025 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1990025
PC terminal block, Nominal current: 2 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 4, Type of connection: Spring-cage conn., Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/29/2004 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.001693 KG
http://
Catalog page information Page 459 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.5 mm Dimension a 7.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PTSA 0.5 4-2.5- Z Data Sheet/Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 131.68 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal electrical ratings for this terminal block?
The nominal voltage is 160 V, and the nominal current (I) is 2 A.
What wire cross-section ranges can I use with this component?
Solid conductors must be between 0.14 mm² and 0.5 mm². Stranded wires must be between 0.2 mm² and 0.5 mm{}.
Is there a specified stripping length for the connecting wire?
Yes, the required stripping length is 9 mm.
Are the components compliant with environmental regulations?
The product notes confirm they are WEEE/RoHS-compliant.
