This reliable terminal block provides secure, robust electrical connections ideal for industrial control and panel building applications. Designed with a 2.5 mm pitch and supporting up to 16 positions at 2A/160V, it features quick-connect spring cage terminals and is built from durable PA material. The accompanying documentation covers comprehensive technical data sheets, detailed connection specifications (including various conductor cross sections), usage guidelines, and essential safety compliance certifications (UL, VDE). This manual serves electrical engineers and automation professionals needing precise information for seamless system integration and reliable performance.

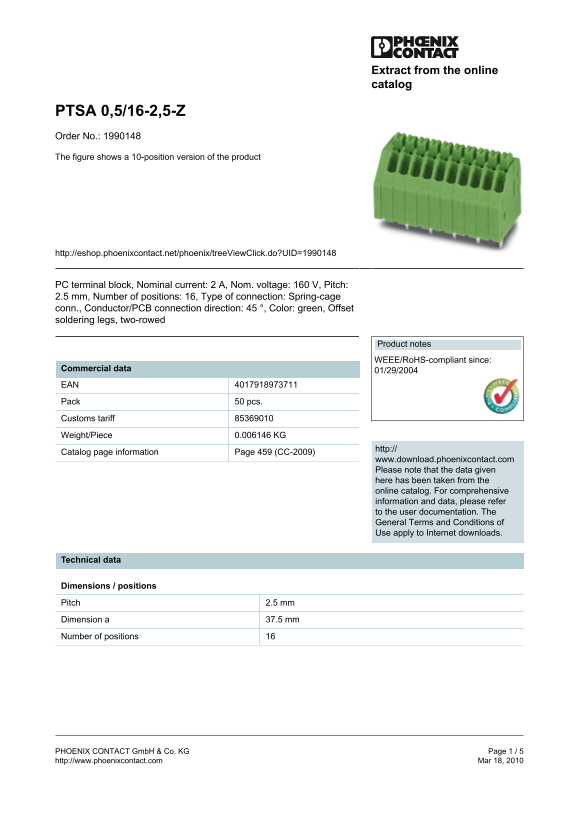

Page 1 Text Content
Extract from the online catalog
PTSA 0,5/16-2,5-Z Order No.: 1990148 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1990148
PC terminal block, Nominal current: 2 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 16, Type of connection: Spring-cage conn., Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/29/2004 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.006146 KG
http://
Catalog page information Page 459 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.5 mm Dimension a 37.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PTSA 0.5 16-2.5-Z Data Handbook / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 131.79 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum electrical ratings of this terminal block?
The nominal current is 2 A, and the nominal voltage is 160 V.
What size conductors can be connected to this block?
It accepts solid wires up to 0.5 mm² or stranded wires up to 0.5 mm².
How does the wire connect relative to the surface?
The conductor connection direction is designed to face 45 degrees.
Does this product meet environmental standards?
Yes, it is WEEE and RoHS-compliant.
