Phoenix Contact PTSA 1,5 2-3,5-Z Data Sheet
Summary
This robust terminal block provides secure, high-performance electrical connections for complex industrial and automation systems. The detailed manual serves as an essential resource, covering complete product specifications including precise dimensions, conductor compatibility data, comprehensive safety ratings (UL/VDE), and technical installation guidelines. It is designed for professional engineers, technicians, and system integrators building reliable control cabinet circuitry.
Page 1 Text Content
Extract from the online catalog

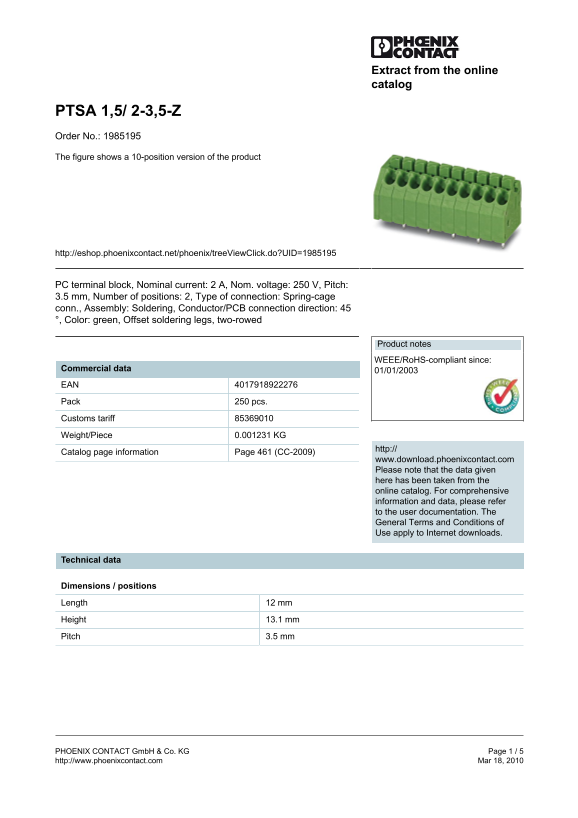

PTSA 1,5/ 2-3,5-Z Order No.: 1985195 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1985195
PC terminal block, Nominal current: 2 A, Nom. voltage: 250 V, Pitch: 3.5 mm, Number of positions: 2, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.001231 KG
http://
Catalog page information Page 461 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 12 mm Height 13.1 mm Pitch 3.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
