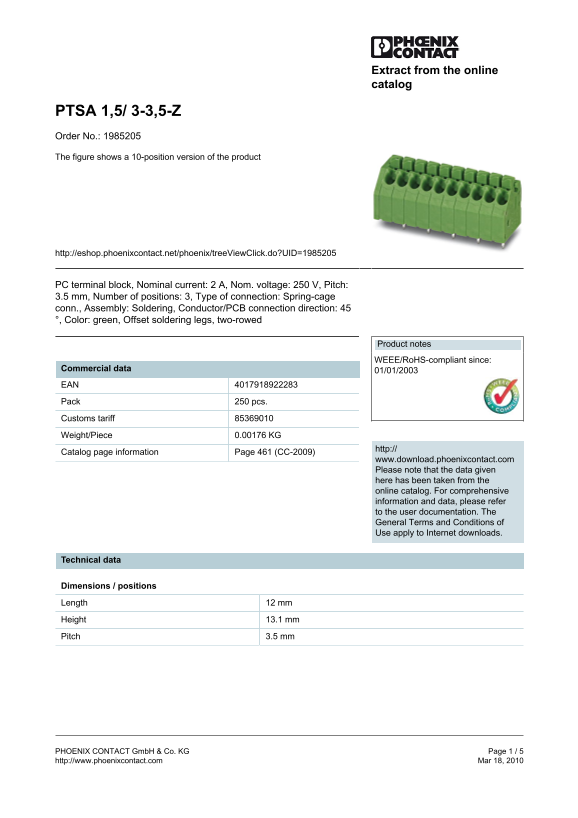

Phoenix Contact PTSA 1,5 3-3,5- Z Order No. 1985205 Product Data Manual and Illustration Sheet
Summary
This professional terminal block is essential for building reliable electrical industrial assemblies, offering a robust spring-cage connection system up to 2A at 250V. The accompanying manual serves as a comprehensive technical resource, providing detailed specifications, compliance certifications (UL, VDE), dimensioning diagrams, and precise guidelines on acceptable conductor cross-sections. This product is designed for electrical engineers, automation specialists, and industrial equipment designers who require high-quality, certified connectivity solutions.
Page 1 Text Content
Extract from the online catalog
PTSA 1,5/ 3-3,5-Z Order No.: 1985205 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1985205
PC terminal block, Nominal current: 2 A, Nom. voltage: 250 V, Pitch: 3.5 mm, Number of positions: 3, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.00176 KG
http://
Catalog page information Page 461 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 12 mm Height 13.1 mm Pitch 3.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
