Phoenix Contact PTSA 0,5 9-2,5-Z Order No. 1990070 Product Data Manual
Summary
This advanced terminal block provides dependable electrical connections for industrial control systems and panel building. Featuring a spring-cage connection, it supports nominal currents up to 2A at 160V, ensuring reliability in diverse applications. The accompanying documentation serves as a comprehensive technical resource for engineers and automation technicians, detailing precise dimensional drawings, full compliance certifications (UL, VDE), and rigorous electrical ratings necessary for proper system integration and adherence to international standards.
Page 1 Text Content
Extract from the online catalog

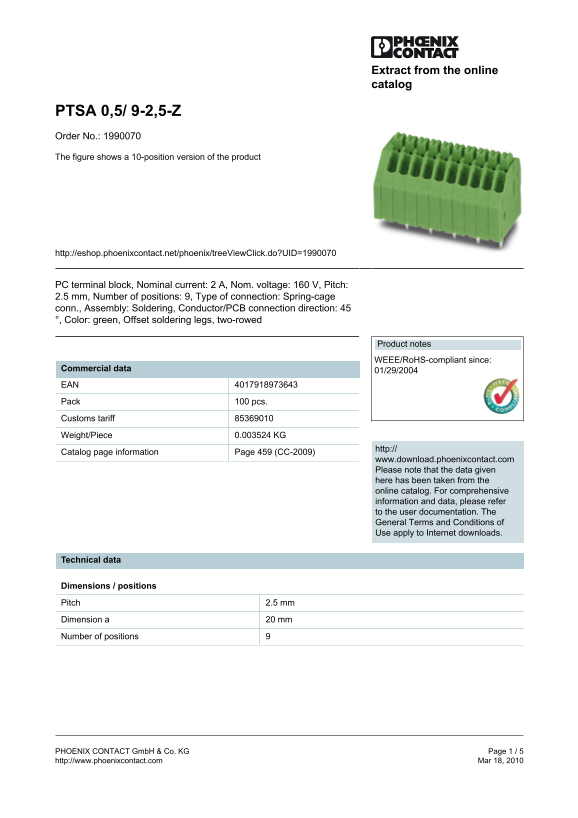

PTSA 0,5/ 9-2,5-Z Order No.: 1990070 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1990070
PC terminal block, Nominal current: 2 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 9, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/29/2004 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.003524 KG
http://
Catalog page information Page 459 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.5 mm Dimension a 20 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
