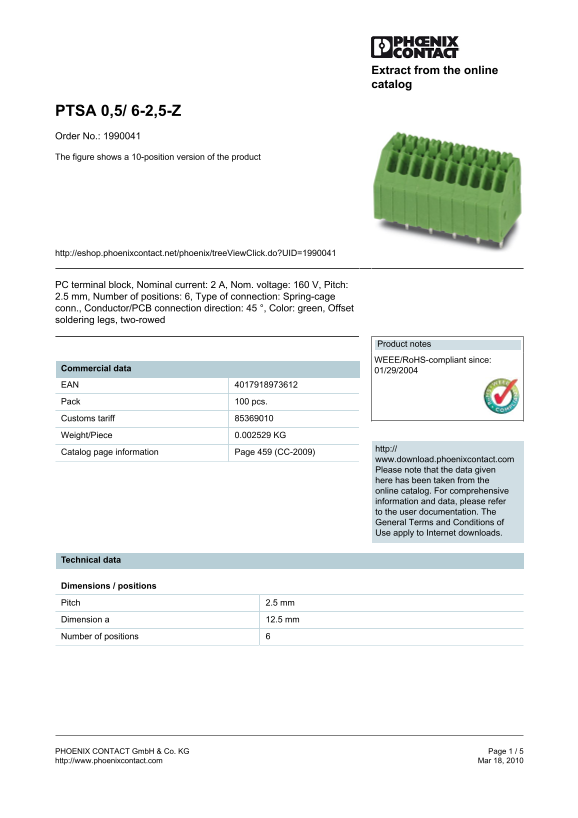

Extract from the online catalog
PTSA 0,5/ 6-2,5-Z Order No.: 1990041 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1990041
PC terminal block, Nominal current: 2 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 6, Type of connection: Spring-cage conn., Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/29/2004 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.002529 KG
http://
Catalog page information Page 459 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.5 mm Dimension a 12.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
