Phoenix Contact FKC 2,5 8-STF-5,08 Order No. 1873265 Product Data Handbook & Manual
Summary
This technical documentation provides a comprehensive overview and robust compatibility guide for modular plug components and terminal blocks. Covering detailed specifications like nominal current, voltage ranges, and conductor cross-section guidelines, it ensures selection of certified parts for reliable electrical interconnectivity. Ideal for industrial engineers and automation technicians, this resource includes dimensional drawings, accessories lists, and compliance data necessary for professional system design and installation.

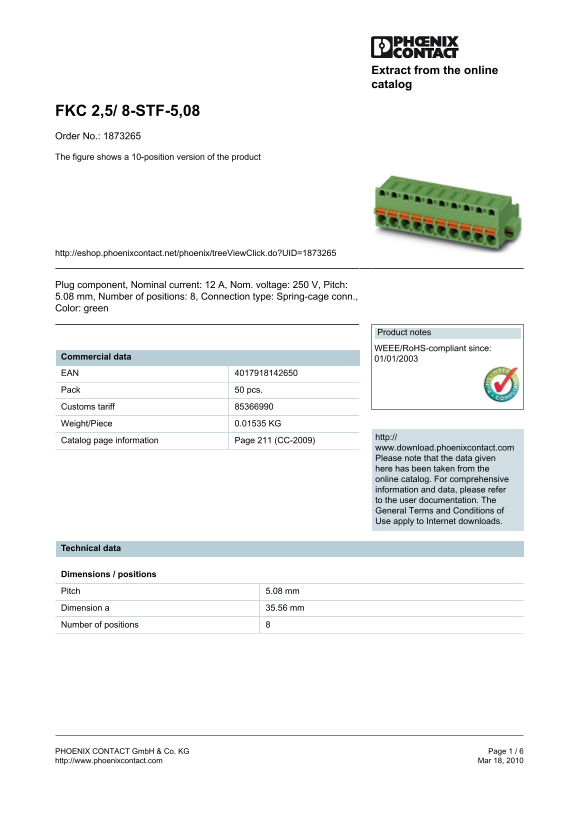

Page 1 Text Content
Extract from the online catalog
FKC 2,5/ 8-STF-5,08 Order No.: 1873265 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1873265
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 8, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01535 KG
http://
Catalog page information Page 211 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 35.56 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FKC 2,5 8-STF-5,08 Order No. 1873265 Product Data Handbook & Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 130.18 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the rated voltage and current for the FKC 2,5/ 8-STF-5,08 component?
It has a nominal current of 12 A and a nominal voltage U of 250 V.
Are there different connection types available?
Yes, options include Spring-cage (FKC) and Screw connections (e.g., MSTBVK).
What is the pitch size for these components?
The standard pitch dimension specified is 5.08 mm.
What is the maximum conductor cross section supported?
It supports conductors up to 2.5 mm²; stranded versions can handle more with ferrules.
