Phoenix Contact FKC 2,5 4-ST-5,08 Order No. 1873074 Product Data Handbook - 10-Position Version
Summary
Discover high-performance modular plug components engineered for reliable electrical connectivity up to 12A/250V. This comprehensive manual provides detailed technical data on the advanced terminal blocks, covering specifications like pitch (5.08 mm), connection types, and crucial compliance information (RoHS, WEEE). It is essential reading for electrical engineers, automation professionals, and technicians who require accurate guidance on proper installation, suggested accessories, tools, and component compatibility within industrial control systems.

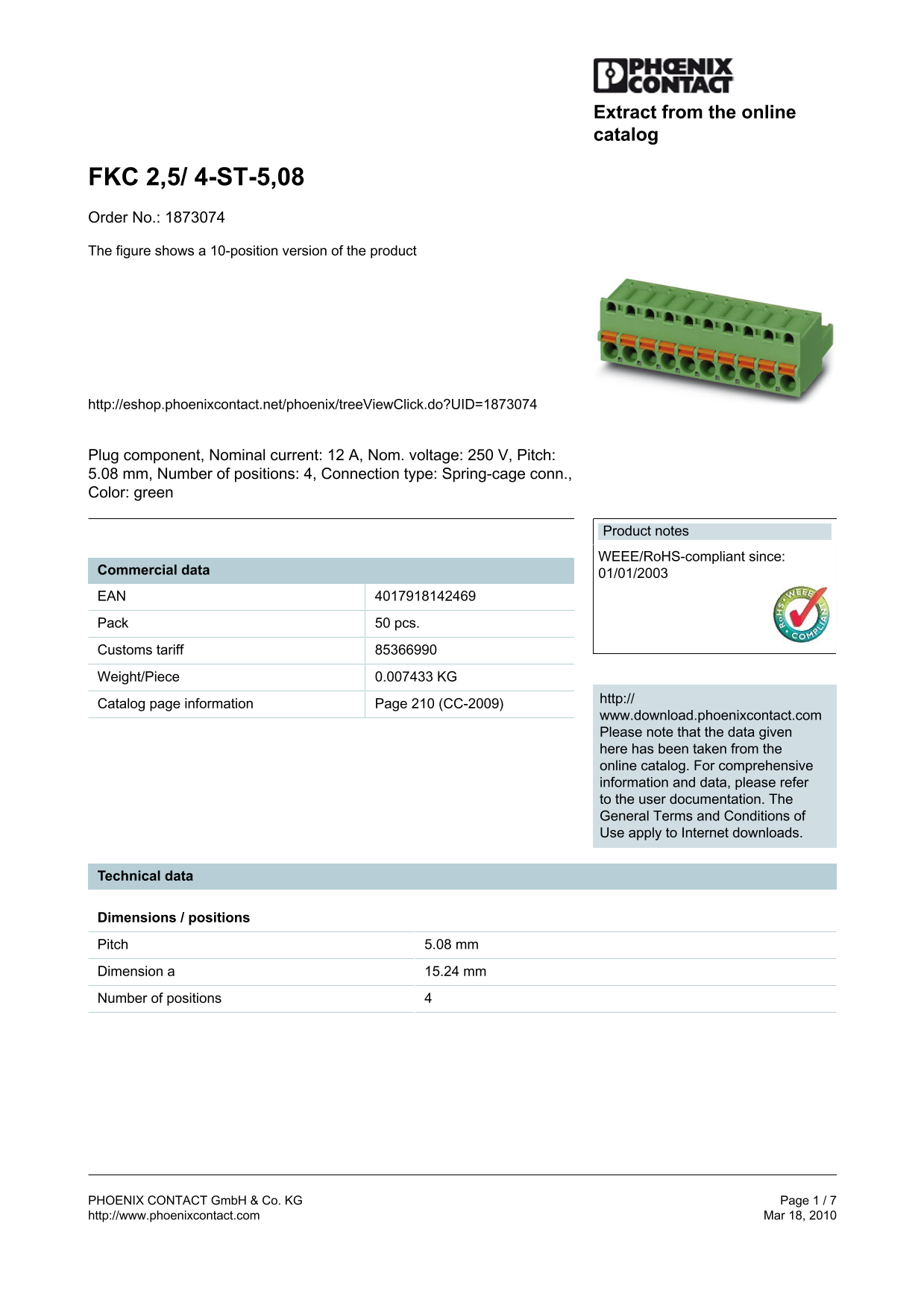

Page 1 Text Content
Extract from the online catalog
FKC 2,5/ 4-ST-5,08 Order No.: 1873074 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1873074
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 4, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.007433 KG
http://
Catalog page information Page 210 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 15.24 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 7 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FKC 2,5 4-ST-5,08 Order No. 1873074 Product Data Handbook - 10-Position Version
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 137.01 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the general electrical specifications for this plug component?
The nominal current is 12 A, and the basic rated voltage is 250 V to 320 V depending on the specific model.
What crossing sections can I use when wiring stranded conductors?
Stranded conducting cross sections must be between a minimum of 0.2 mm² and a maximum of 2.5 mm°.
Are there accessories available for strain relief on these units?
Yes, specific strain reliefs are available; for instance, the STZ 4-FKC-5,08 is designed for 4-position plugs.
