Phoenix Contact MSTBV 2,5 10-GF-5,08 Order No. 1777154 Data Manual
Summary
Discover this modular terminal block header system, designed for robust and efficient electrical connectivity in demanding industrial applications. This product features a standard pitch and supports up to 10 positions with durable construction. The accompanying technical manual provides comprehensive data sheets, dimensioned drawings, compliance certifications (UL, VDE), and listings for matching plugs and accessory components—including specialized marker cards and coding sections. It is an essential resource for electrical engineers, designers, and automation professionals requiring reliable and compliant interconnection solutions.
Page 1 Text Content

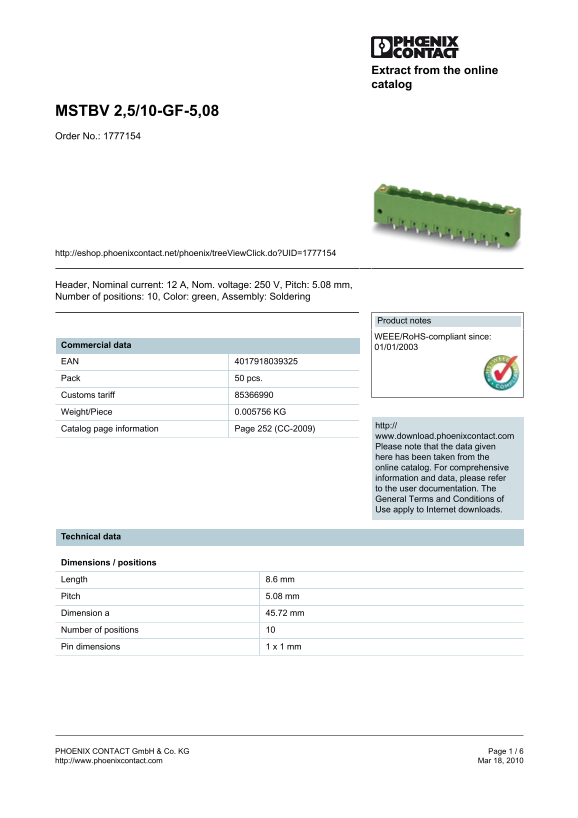

Extract from the online catalog
MSTBV 2,5/10-GF-5,08 Order No.: 1777154
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1777154
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.005756 KG
http://
Catalog page information Page 252 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 8.6 mm Pitch 5.08 mm Dimension a 45.72 mm Number of positions Pin dimensions 1 x 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
