Phoenix Contact ICV 2,5 4- G-5,08 Order No. 1785968 Product Figure: A 10-position Version of the Product Data Manual and Specifications User Guide
Summary
Discover modular terminal blocks designed for robust industrial electrical connections. This resource provides comprehensive technical documentation, including detailed specifications, diverse connection types (e.g., soldering, press-in), and relevant accessories for reliable system assembly. Ideal for electrical engineers, controls technicians, and automation professionals building control cabinets who require high-quality, certified components adhering to international standards like UL and VDE.
Page 1 Text Content
Extract from the online catalog

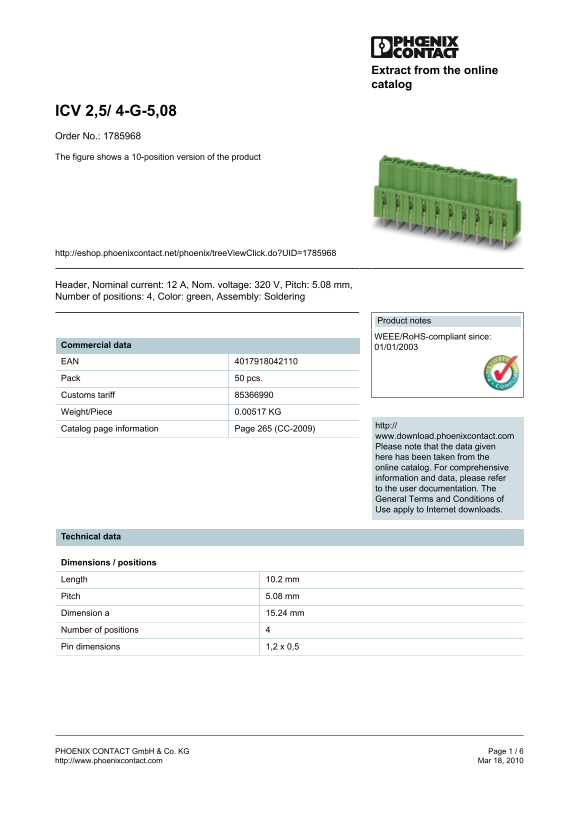

ICV 2,5/ 4-G-5,08 Order No.: 1785968 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1785968
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 4, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00517 KG
http://
Catalog page information Page 265 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.2 mm Pitch 5.08 mm Dimension a 15.24 mm Number of positions Pin dimensions 1,2 x 0,5
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
