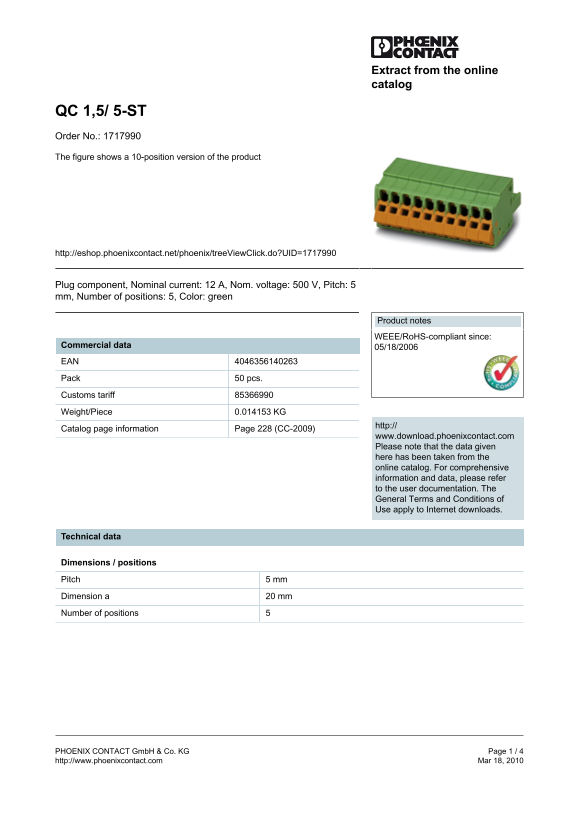

QC 1,5/ 5-ST Order No.: 1717990 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1717990
Plug component, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 5 mm, Number of positions: 5, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/18/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.014153 KG
http://
Catalog page information Page 228 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 20 mm Number of positions
