Phoenix Contact PT 1,5 3-5,0-H Order No. 1935174 Product Data Handbook & Instructions Figure illustrates a 10-position variant of the item's documentation and specifications.
Summary
This high-performance PC terminal block is an essential component for industrial electrical panel wiring, designed for robust connections up to 17.5 A at a 250 V nominal voltage using soldering assembly. The comprehensive manual provides detailed technical data including precise dimensions, full compatibility listings for various conductor types (solid and stranded), mounting accessories, and critical compliance standards ($\text{WEEE}/\text{RoHS}$). It is the ideal solution for electrical engineers, automation technicians, and industrial installers requiring a reliable, standardized connection point in demanding control systems.
Page 1 Text Content
Extract from the online catalog

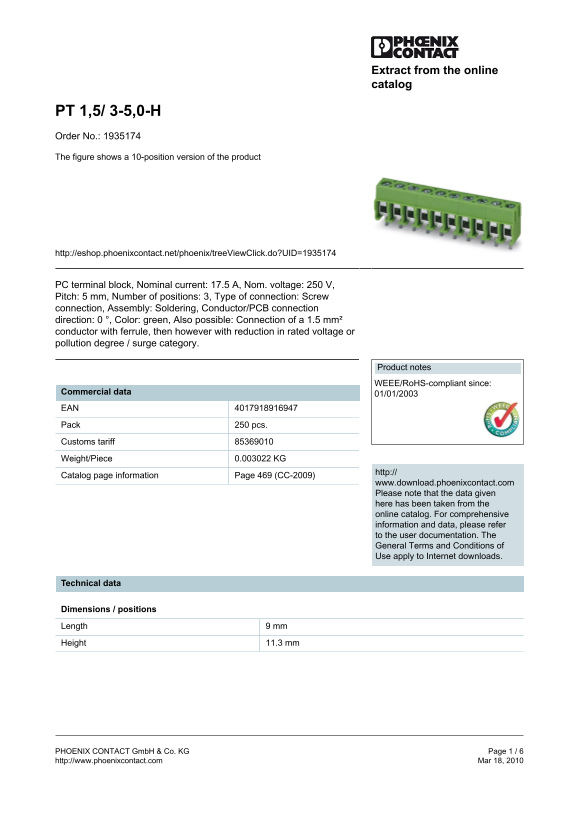

PT 1,5/ 3-5,0-H Order No.: 1935174 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1935174
PC terminal block, Nominal current: 17.5 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Also possible: Connection of a 1.5 mm² conductor with ferrule, then however with reduction in rated voltage or pollution degree / surge category.
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.003022 KG
http://
Catalog page information Page 469 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9 mm Height 11.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
