Phoenix Contact PT 1,5 6-5,0-H Data Sheet Manual(Order No. 1935200)
Summary
This modular PC terminal block is designed for reliable, high-performance electrical connections in circuit board applications. Featuring a 5mm pitch and robust ratings up to 17.5A at 250V, it offers flexible connection methods via both screw terminals and soldering points. The accompanying technical manual provides comprehensive data, including precise dimensions, compatible conductor cross-sections (solid/stranded), necessary accessories (marker cards, tools), and safety standards, ensuring optimal installation for professionals in electronic control and industrial electrical systems.
Page 1 Text Content
Extract from the online catalog

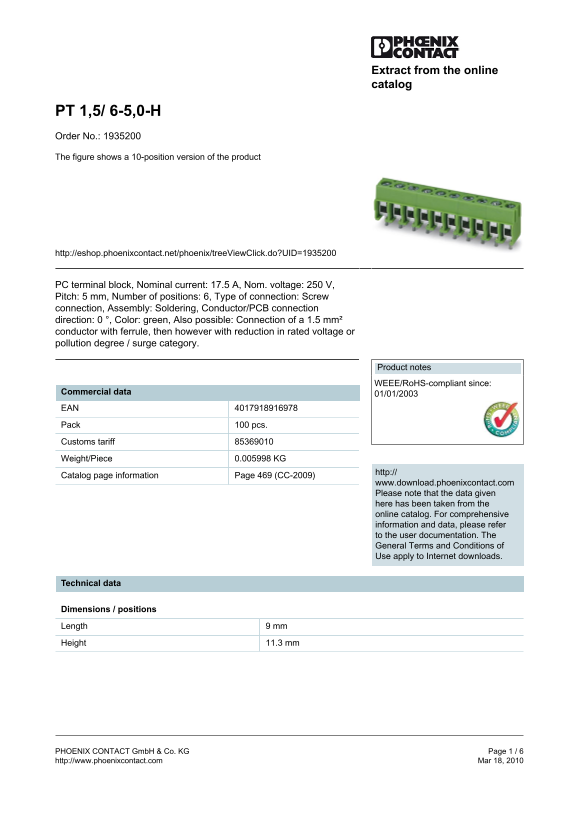

PT 1,5/ 6-5,0-H Order No.: 1935200 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1935200
PC terminal block, Nominal current: 17.5 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 6, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Also possible: Connection of a 1.5 mm² conductor with ferrule, then however with reduction in rated voltage or pollution degree / surge category.
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.005998 KG
http://
Catalog page information Page 469 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9 mm Height 11.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
