Phoenix Contact PT 1,5 4- PVH-5,0 Data Sheet Manual Order No. 1934887
Summary
This robust terminal block component provides reliable electrical connection points with a nominal current of 12A and 250V. Designed for durable integration, it features screw connections suitable for solid and stranded conductors. The accompanying manual is essential resource for engineers and electricians, detailing all technical specifications, dimensional drawings, conductor cross-section limits, necessary tools, and compliance approvals (e.g., UL/CE). It supports the professional assembly of reliable control cabinet systems.
Page 1 Text Content
Extract from the online catalog

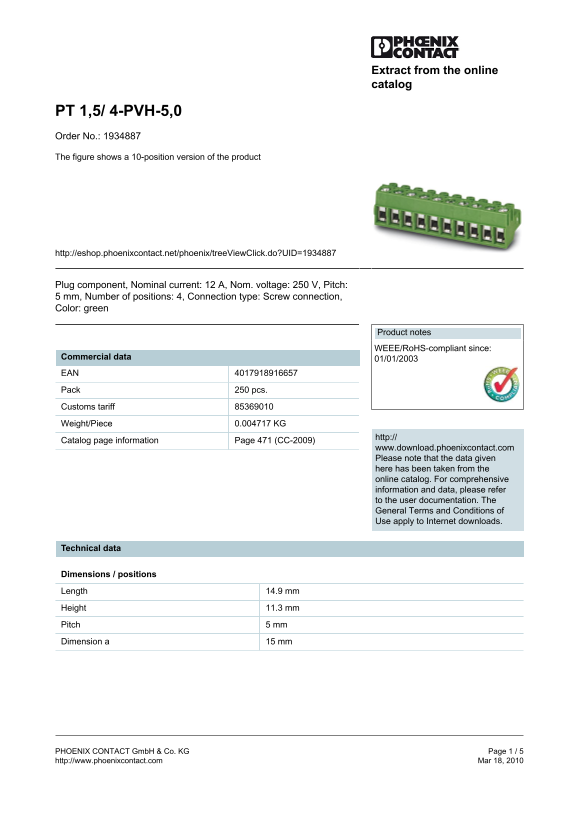

PT 1,5/ 4-PVH-5,0 Order No.: 1934887 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1934887
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 4, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.004717 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.9 mm Height 11.3 mm Pitch 5 mm Dimension a 15 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
