Phoenix Contact PT 1,5 8- PVH-3,5 Data Sheet Manual Orders No. 1984073
Summary
This component plug facilitates secure electrical connections in industrial applications. Featuring an 8-position configuration, it supports a nominal current of 8 A and has a pitch of 3.5 mm, making it ideal for building reliable control systems. The accompanying documentation is a comprehensive guide for professionals and engineers, covering detailed technical data, dimensional drawings, connection guidelines for various wire types, compatibility information, and essential accessories needed for professional installation accuracy.
Page 1 Text Content

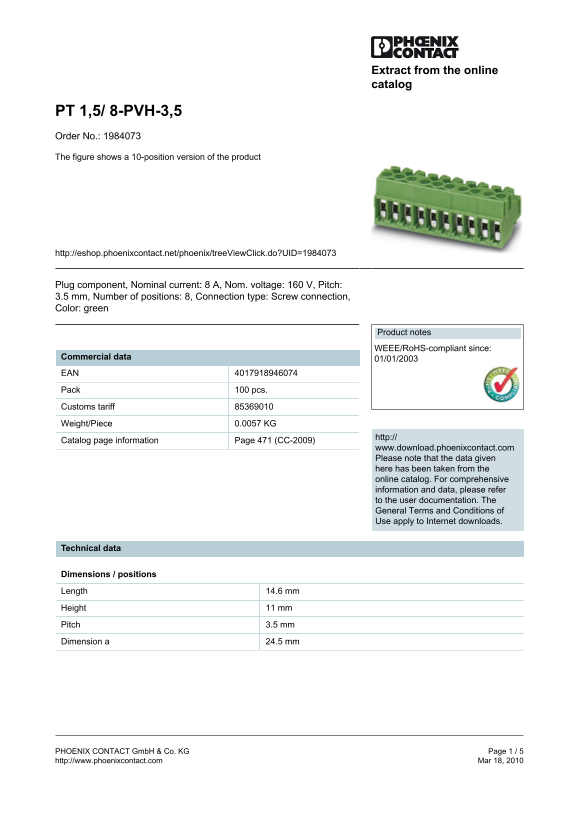

Extract from the online catalog
PT 1,5/ 8-PVH-3,5 Order No.: 1984073 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1984073
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 8, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.0057 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.6 mm Height 11 mm Pitch 3.5 mm Dimension a 24.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
