Modular plug component designed for robust electrical connections, rated for up to 8A at 160V. Featuring a durable spring-cage connection and high insulating standards (UL 94 V0), this connector is ideal for industrial automation systems requiring reliable performance. The accompanying documentation provides technical professionals with comprehensive details, including precise dimensions, detailed conductor cross-section guidelines, and full compliance data necessary for specifying mission-critical wiring solutions.

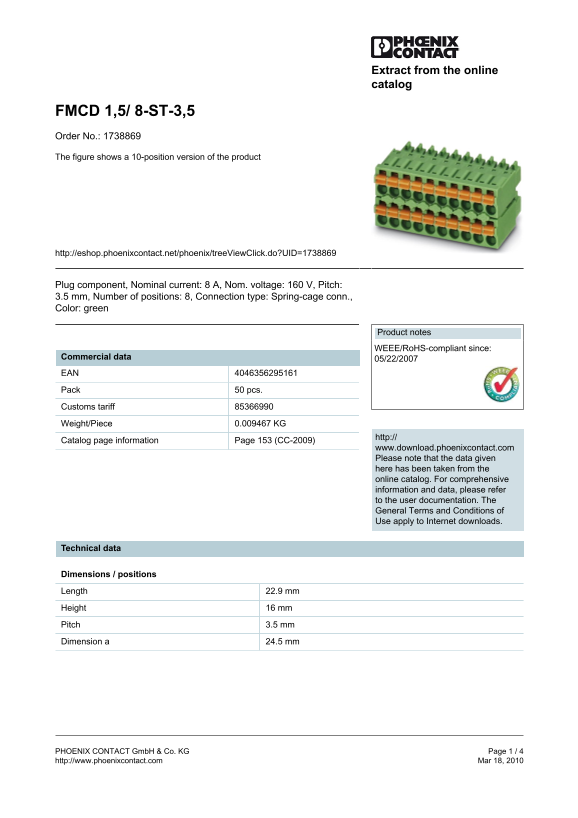

Page 1 Text Content
Extract from the online catalog
FMCD 1,5/ 8-ST-3,5 Order No.: 1738869 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1738869
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 8, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/22/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.009467 KG
http://
Catalog page information Page 153 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 16 mm Pitch 3.5 mm Dimension a 24.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - FMCD 1,5 8-ST-3,5 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 97.67 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What conductor cross sections are acceptable for wiring?
Solid conductors must be between a minimum of 0.2 mm² and a maximum of 1.5 mm².
What is the rated voltage and nominal current?
The rated voltage (III/2) is 160 V, with a nominal current rating of 8 A.
Does this component meet safety standards regarding insulation?
Yes, the insulating material has an inflammability class compliant with UL 94 V0.
