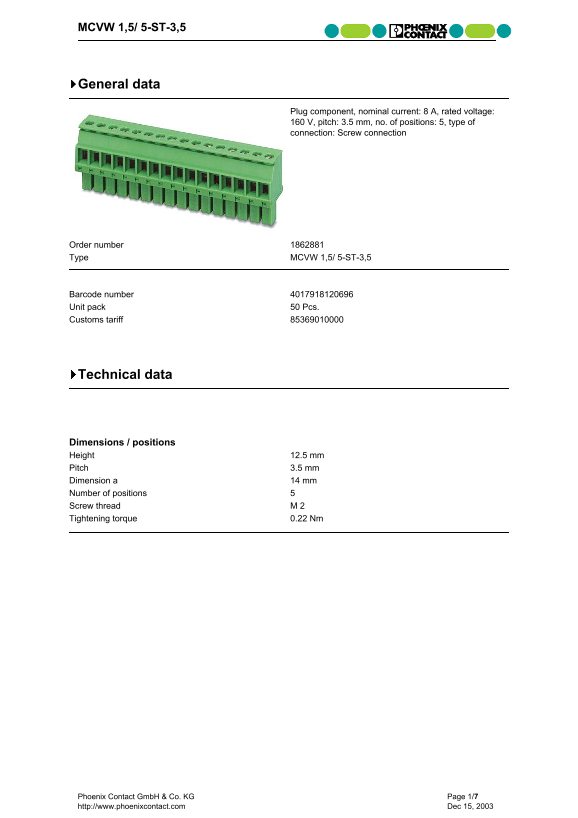

MCVW 1,5/ 5-ST-3,5
General data
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 5, type of connection: Screw connection
Order number Type MCVW 1,5/ 5-ST-3,5
Barcode number Unit pack 50 Pcs. Customs tariff
Technical data
Dimensions / positions Height 12.5 mm Pitch 3.5 mm Dimension a 14 mm Number of positions 5 Screw thread M 2 Tightening torque 0.22 Nm
