Phoenix Contact FMCD 1,5 6-ST-3,5 Data Sheet
Summary
This modular electrical plug component is designed for building reliable, standardized hookups in industrial control panels. Rated for up to 8A at 160V with a secure spring-cage connection, it provides efficient power transfer across six positions. The accompanying data sheet details critical technical specifications, including precise dimensions and comprehensive wiring compatibility guidelines (AWG/kcmil), making this connector essential for professional electrical engineers and technicians tackling automation and system integration projects.
Page 1 Text Content

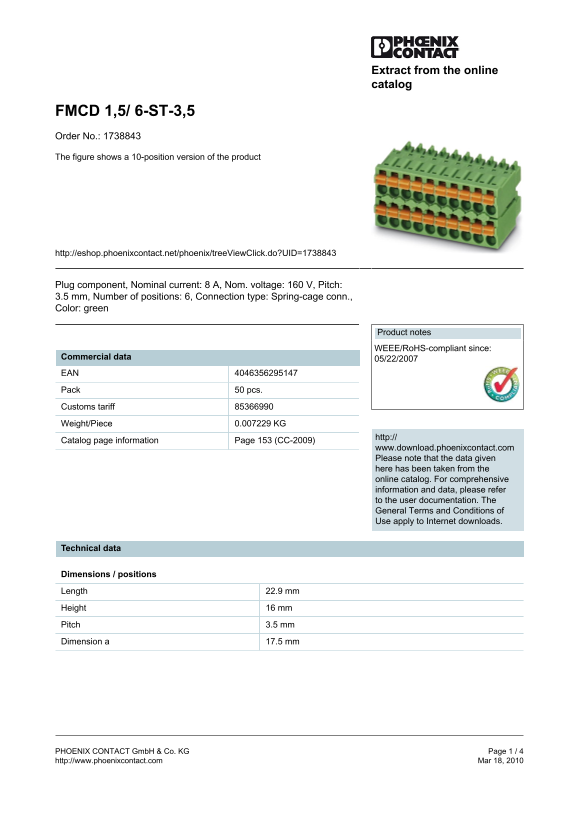

Extract from the online catalog
FMCD 1,5/ 6-ST-3,5 Order No.: 1738843 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1738843
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 6, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/22/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.007229 KG
http://
Catalog page information Page 153 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 16 mm Pitch 3.5 mm Dimension a 17.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
