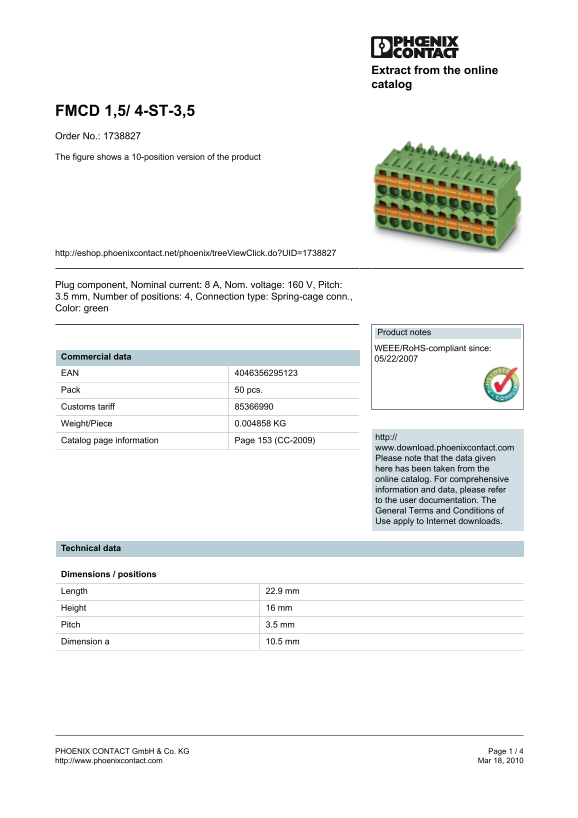

Extract from the online catalog
FMCD 1,5/ 4-ST-3,5 Order No.: 1738827 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1738827
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 4, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/22/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.004858 KG
http://
Catalog page information Page 153 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 16 mm Pitch 3.5 mm Dimension a 10.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
