PHOENIX CONTACT FK- MCP 1,5 10- ST-3,5 User Manual and Technical Specifications
Summary
This product details a 10-position plug component designed for robust electrical connections in terminal blocks. Rated for up to 8 A at 160 V, this unit ensures reliable wiring with a standard 3.5 mm pitch. The accompanying manual provides comprehensive technical specifications, covering precise dimensions, various conductor cross-section allowances (including AWG/kcmil), and essential compliance data from UL and VDE testing. Ideal for electrical engineers, automation designers, and technicians building industrial control panels who require standardized, high-performance connection solutions.
Page 1 Text Content
Extract from the online catalog

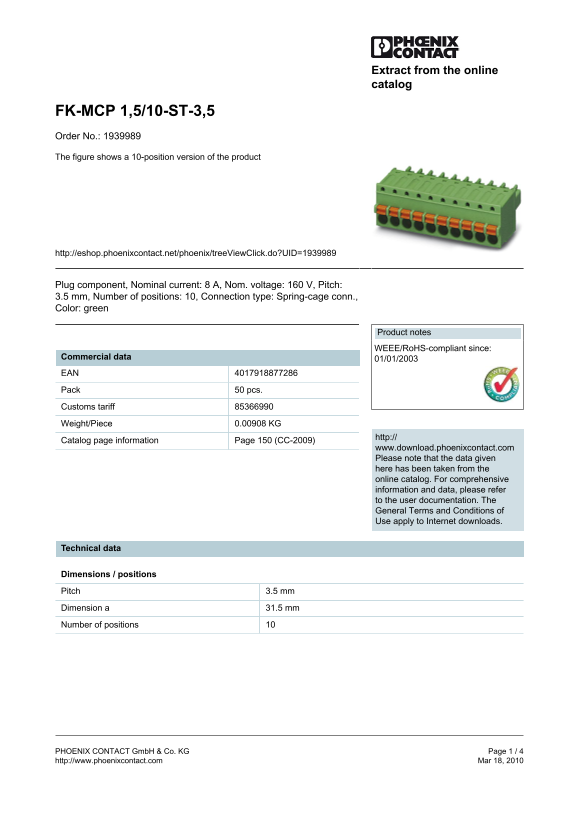

FK-MCP 1,5/10-ST-3,5 Order No.: 1939989 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1939989
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00908 KG
http://
Catalog page information Page 150 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 31.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
