Phoenix Contact - FK-MCP 1,5 5-STF-3,81 Data Sheet / Manual
Summary
These specialized electrical connection components provide reliable termination points for industrial control systems. Designed with various connection types—including spring-cage, screw, and soldering options—they support multiple voltage and current ratings. This manual serves as a comprehensive technical guide covering detailed dimensions, compatibility specifications, necessary accessories (like marker cards), and product variations to ensure accurate selection for diverse wiring needs. It is ideal for electrical engineers, system designers, and technicians working on advanced automation or circuit panel assemblies.
Page 1 Text Content
Extract from the online catalog

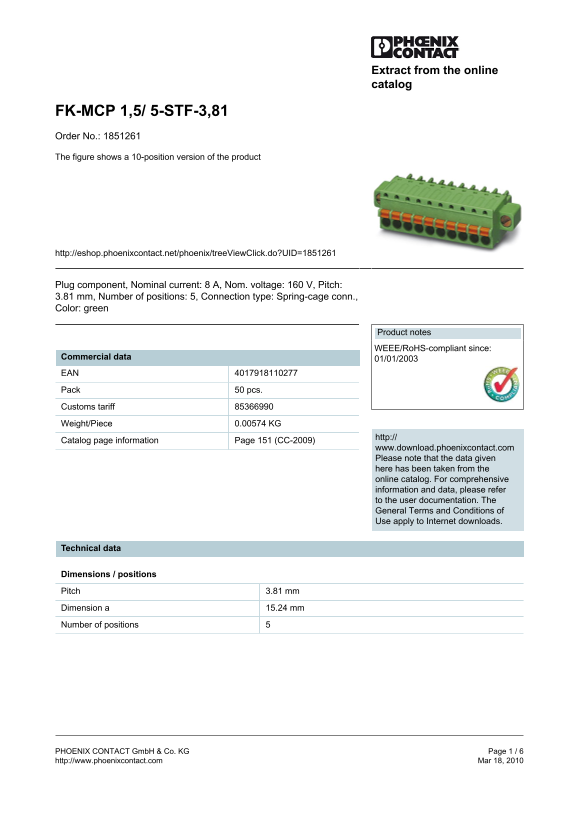

FK-MCP 1,5/ 5-STF-3,81 Order No.: 1851261 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1851261
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 5, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00574 KG
http://
Catalog page information Page 151 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 15.24 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
