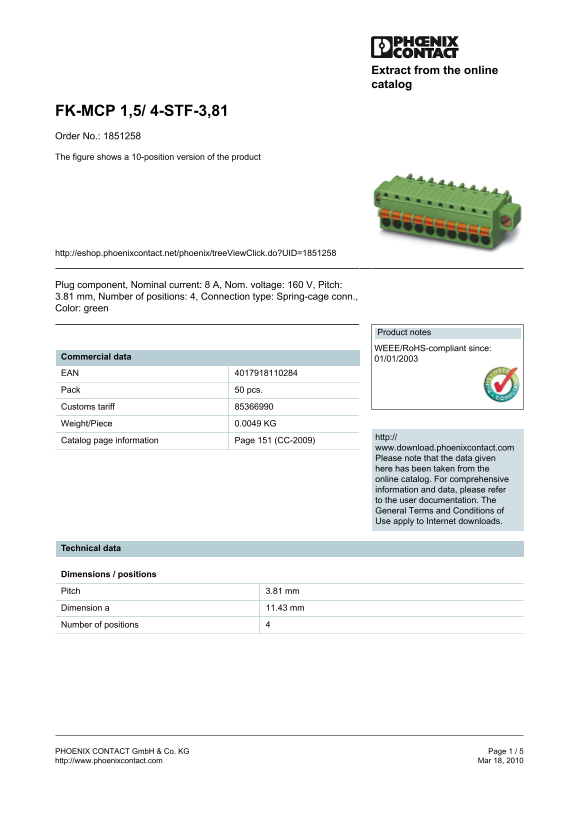

Page 1 Text Content
Extract from the online catalog
FK-MCP 1,5/ 4-STF-3,81 Order No.: 1851258 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1851258
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 4, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0049 KG
http://
Catalog page information Page 151 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 11.43 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - FK-MCP 1.5 4-STF-3.81 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 137.98 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current of this plug component?
The nominal current (I) rating provided is 8 A.
What are the maximum allowable conductor cross sections?
For solid conductors, the size can range from a minimum of 0.14 mm² to a maximum of 1.5 mm².
What protection standards do these blocks adhere to?
They carry certifications including CB, CSA, CUL, GOST, UL, and VDE-PZI.
