Phoenix Contact PT 1,5 5-PVH-3,5 Data Sheet
Summary
This technical guide provides comprehensive specifications for a modular terminal plug component designed for reliable and secure electrical connections. The document details crucial technical data, including dimensions, material standards, wiring capacities, and necessary installation guidelines. It serves as an essential resource for electrical engineers, automation professionals, and industrial technicians who require product compliance verification and precise integration information for demanding electronic systems.
Page 1 Text Content

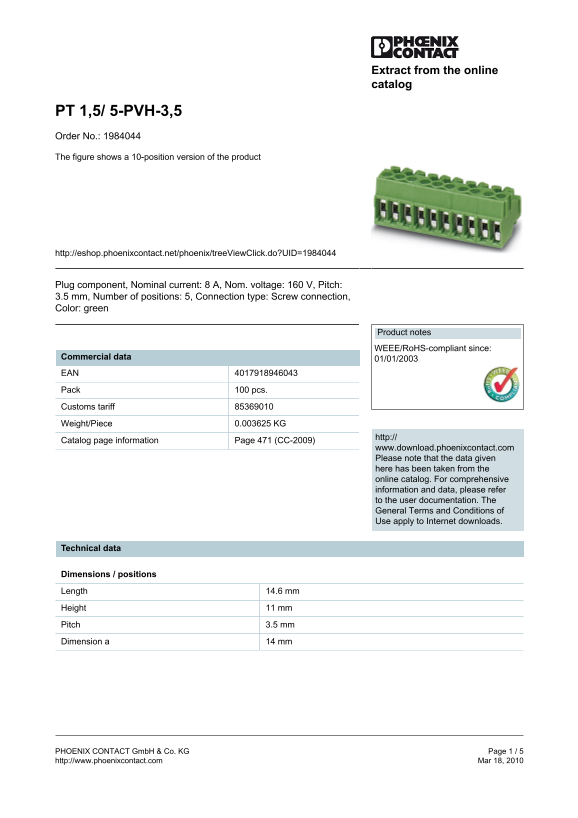

Extract from the online catalog
PT 1,5/ 5-PVH-3,5 Order No.: 1984044 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1984044
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 5, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.003625 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.6 mm Height 11 mm Pitch 3.5 mm Dimension a 14 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
