Phoenix Contact - PT 2.5 6- PVH-5.0 Data Sheet
Summary
This high-performance terminal block provides robust screw connections for reliable electrical interconnectivity in industrial automation systems. Designed with a precise 5mm pitch and rated for up to 14A nominal current, it ensures secure and durable power transfer. The technical manual offers detailed specifications vital for integration, covering optimal wiring practices for solid and stranded conductors, maximum load current limits, and compliance data including UL/CUL ratings. This component is essential for electrical engineers and technicians building reliable, certified control systems.
Page 1 Text Content
Extract from the online catalog

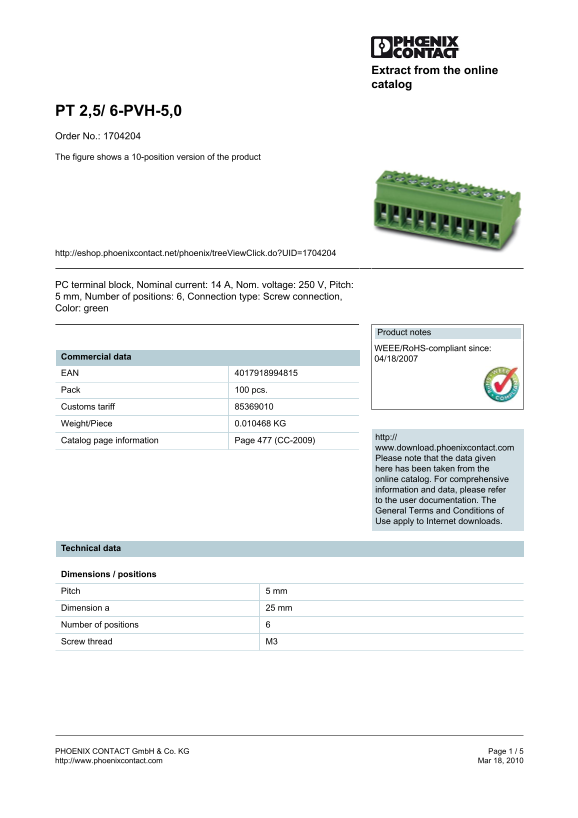

PT 2,5/ 6-PVH-5,0 Order No.: 1704204 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704204
PC terminal block, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 6, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.010468 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 25 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
