Phoenix Contact - PT 2.5 3-PVH-5.0 Data Handbook/Instructions
Summary
This high-performance terminal block is an essential electrical component designed for secure and reliable current distribution in industrial control systems. Featuring a standardized 5mm pitch and durable screw connections, it handles up to 14A at 250V while maintaining RoHS compliance. The manual serves as a comprehensive technical guide covering installation procedures, detailed conductor size specifications (solid/stranded), safety ratings (UL/CUL), and derating factors, making it an indispensable resource for electrical engineers and system designers building professional automation equipment.
Page 1 Text Content

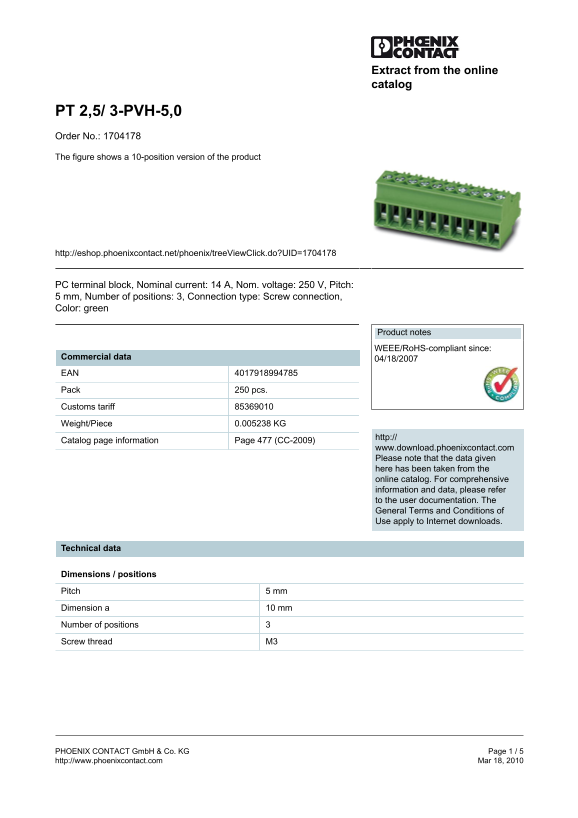

Extract from the online catalog
PT 2,5/ 3-PVH-5,0 Order No.: 1704178 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704178
PC terminal block, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2007 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.005238 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 10 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
