Phoenix Contact PT 1,5 8- PVH-5,0 Data Sheet Manual No. 1934926 Figure illustrates a 10-position variant of the product
Summary
This robust, 8-position terminal block is an essential component for industrial electrical systems, designed for secure and reliable connections up to 12 A at 250 V. It features screw connections and durable PA insulating material, making it perfect for panel builders in automation and control cabinet environments. The accompanying technical documentation provides detailed resources for engineers—including comprehensive wiring guides (solid/stranded conductor specifications), dimensioning diagrams, accessory compatibility, and crucial regulatory compliance approvals (UL/CSA). Use this guide to ensure accurate installation and professional electrical design.
Page 1 Text Content
Extract from the online catalog

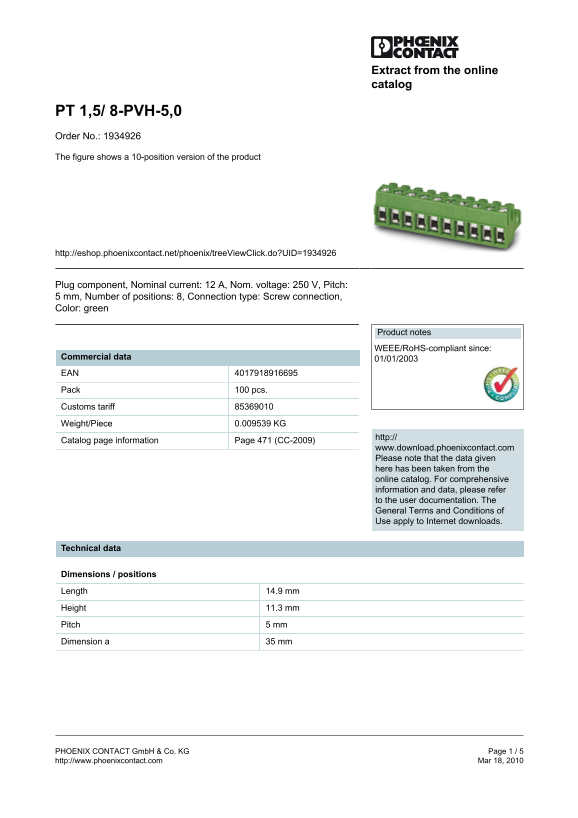

PT 1,5/ 8-PVH-5,0 Order No.: 1934926 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1934926
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 8, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.009539 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.9 mm Height 11.3 mm Pitch 5 mm Dimension a 35 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
