Phoenix Contact PST 1,0 6-3,5 Order No. 1945135 Product Data Manual - Figure Illustrates a 10-Position Version of the Product
Summary
This guide provides detailed specifications for an industrial electronic component designed for reliable socket connections. The product features a nominal current of 8A, a voltage rating up to 160V, and offers precise details on dimensions, assembly methods (soldering), and various certifications (UL, CE). Perfect for engineers, designers, and procurement professionals working on electro-mechanical systems, this manual ensures compliance and guides you through technical data needed for accurate product integration.
Page 1 Text Content
Extract from the online catalog

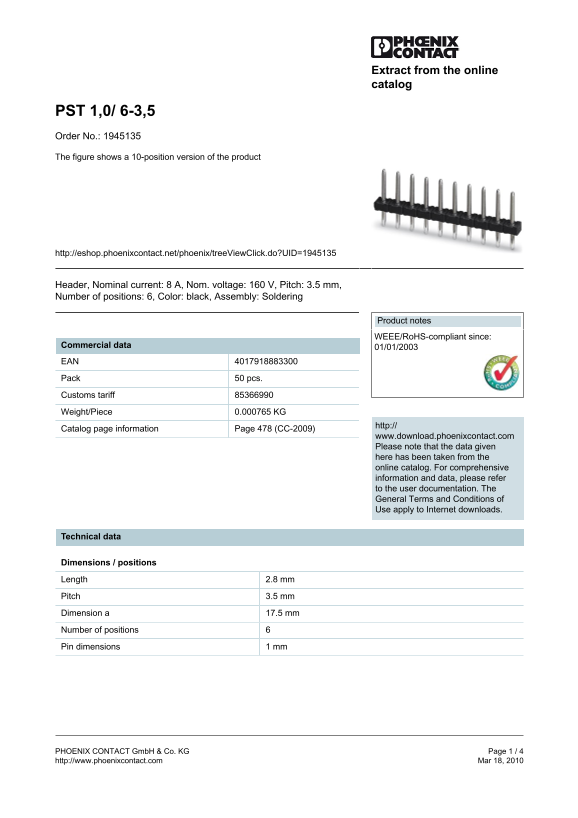

PST 1,0/ 6-3,5 Order No.: 1945135 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1945135
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 6, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000765 KG
http://
Catalog page information Page 478 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 3.5 mm Dimension a 17.5 mm Number of positions Pin dimensions 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
