Phoenix Contact PST 1,0 2-3,5 Order No. 1945096 Product Data Manual - Illustrated 10-Position Version
Summary
This versatile terminal connector module is an essential component for building robust industrial electrical systems, offering reliable connections up to 8A at 160V. The accompanying manual provides detailed engineering support, covering precise technical data, dimensions, drilling plans, derating curves, and compliance information (RoHS/WEEE) necessary for integration into automated equipment. It is designed specifically for electrical engineers and industrial technicians who require high-quality, certified components for complex control panel assembly and reliable circuit implementation.
Page 1 Text Content
Extract from the online catalog

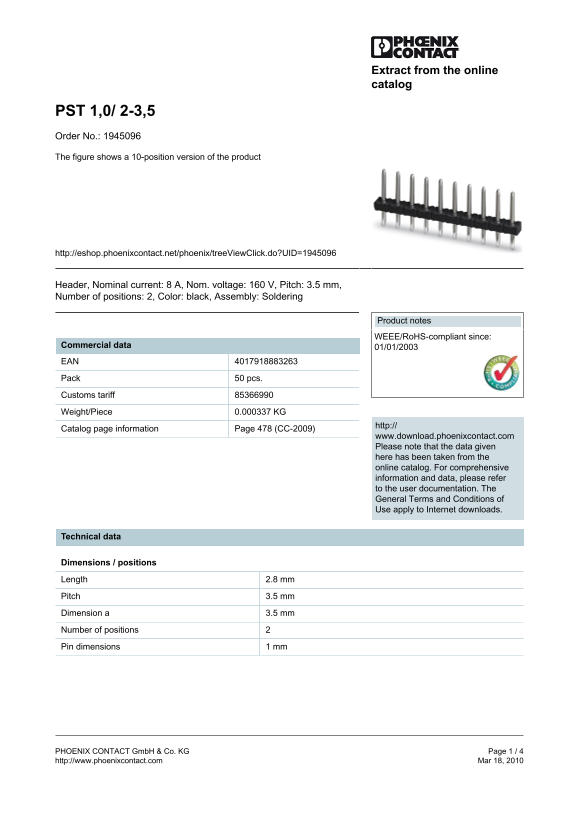

PST 1,0/ 2-3,5 Order No.: 1945096 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1945096
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 2, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000337 KG
http://
Catalog page information Page 478 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 3.5 mm Dimension a 3.5 mm Number of positions Pin dimensions 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
