This versatile soldering electrical header is designed for creating durable, high-performance connections in electronic assemblies up to 14A. The accompanying documentation provides comprehensive technical data sheets, including precise pin dimensions, drilling plans, and solder pad geometry. It also features crucial derating diagrams, ensuring optimal safety and performance when integrating the component into industrial or complex circuit board designs. Ideal for electrical engineers and technicians requiring reliable connectivity solutions.
Page 1 Text Content

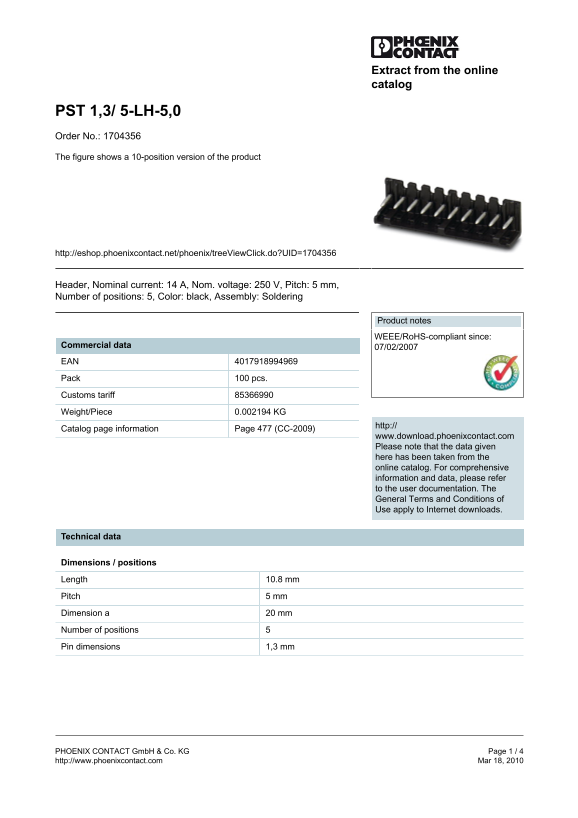

Extract from the online catalog
PST 1,3/ 5-LH-5,0 Order No.: 1704356 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704356
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 5, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.002194 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 20 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PST 1,3 5-LE-H-5,0 Order No. 1704356 Product: 10-Position Version - Data Manual / Instruction Book
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 121.30 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How must this terminal block be assembled?
The product requires soldering for assembly.
What is the rated voltage when used in the III/2 group?
The rated voltage (III/2) is 400 V.
What determines the maximum allowable current load?
The maximum load current depends on the plug used.
What is the official spacing, or pitch, between positions?
The pitch of the terminal block is 5 mm.
