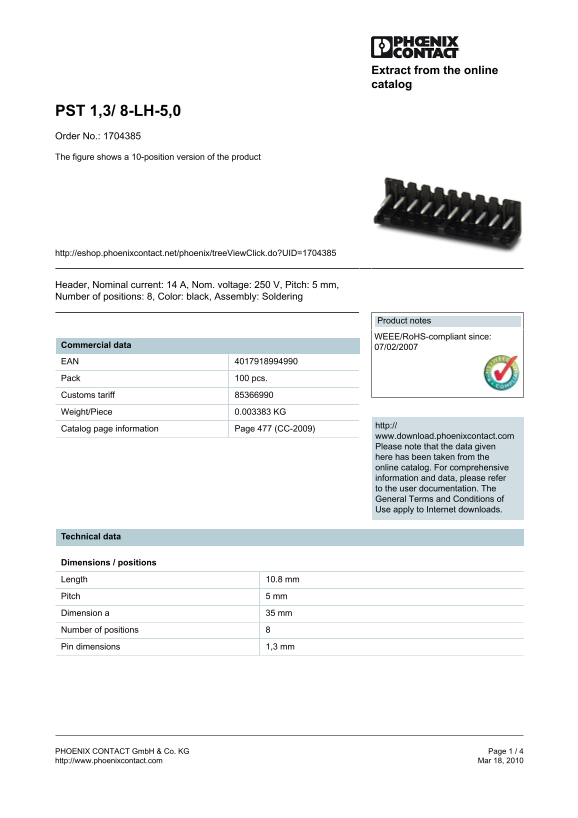

Page 1 Text Content
Extract from the online catalog
PST 1,3/ 8-LH-5,0 Order No.: 1704385 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704385
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 8, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.003383 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 35 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PST 1,3 8-LH-5,0 Order No. 1704385 Product Data Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 121.62 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum rated surge voltage for this device?
The rated surge voltage for both III/3 and III/2 standards is 4 kV.
How should I assemble or connect these components?
They are designed for assembly via soldering connection methods.
What are the key dimensions (pitch and number of positions)?
The pitch is 5 mm, and this specific model has 8 positions. The overall length is 10.8 mm.
Does the device meet any relevant safety standards?
It holds certifications including CUL and UL for various nominal voltages and currents.
