Phoenix Contact PST 1,3 6-LV-5,0 Data Manual 6-Position Product Figure
Summary
This comprehensive guide details the PST series terminal header connector strip, engineered with six positions and a precise 5mm pitch. Designed for soldering assembly in industrial environments, it provides reliable connections capable of handling voltages up to 400V. The accompanying documentation features detailed technical specifications, including dimensional drawings (soldering pad geometry), robust electrical ratings, and essential safety certifications (UL/CUL). This product is essential for electrical engineers, maintenance professionals, and automation designers requiring high-standard, reliable connection points for control systems and machinery development.
Page 1 Text Content

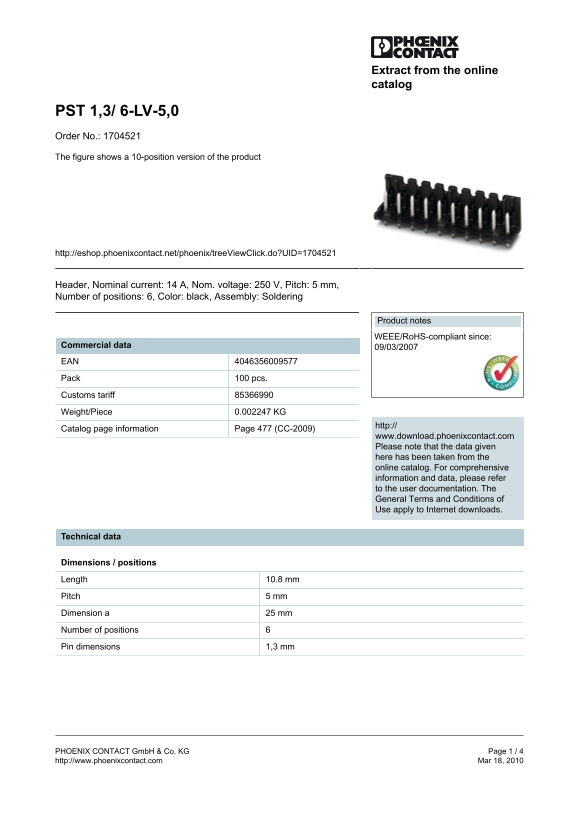

Extract from the online catalog
PST 1,3/ 6-LV-5,0 Order No.: 1704521 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704521
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 6, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/03/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.002247 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 25 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
