Phoenix Contact PST 1,3 2-LL-5,0 Order No. 1704275 Product Data Handbook
Summary
This series terminal strip header (PST 1,3/ 2-LH-5,0) is an industrial component designed for connecting electrical circuits securely via soldering. It features a fixed pitch and robust safety ratings, ensuring reliable performance in automation systems. Included technical documentation provides comprehensive specifications, installation dimensions, wiring guidelines, derating data, and full compliance information (UL, RoHS). Ideal for engineers and technicians building professional control panels and electrical infrastructure.
Page 1 Text Content

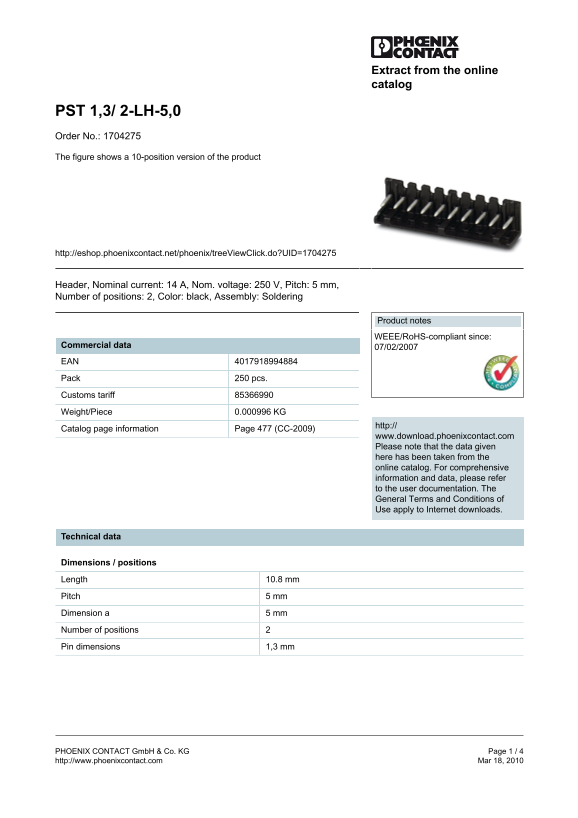

Extract from the online catalog
PST 1,3/ 2-LH-5,0 Order No.: 1704275 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704275
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 2, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.000996 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 5 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
