This technical manual provides comprehensive information on a multi-position electrical terminal header connector. Designed for reliable soldering assembly, this component is engineered to handle nominal currents up to 12 A and features high surge protection ratings. The documentation details precise dimensions, robust electrical specifications (including voltage compliance), and necessary mounting plans, making it essential for electronics engineers and industrial purchasers designing durable control systems and circuit boards.

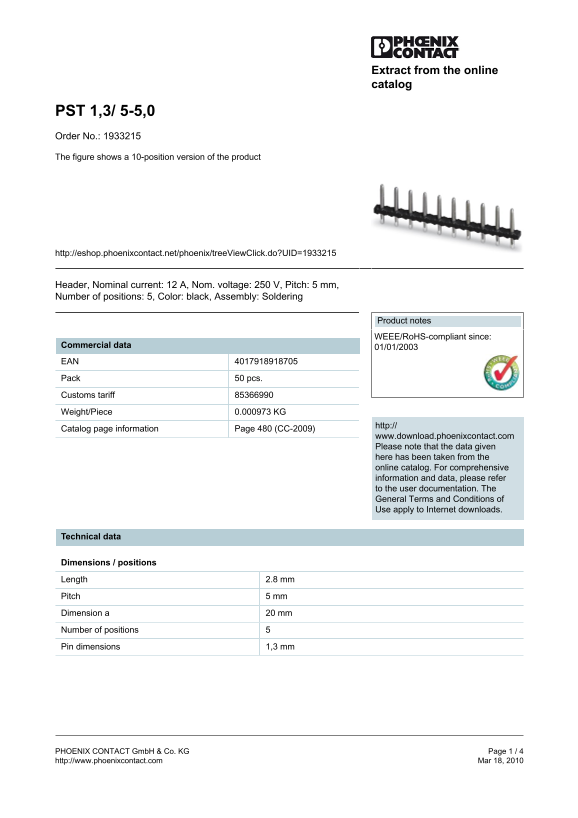

Page 1 Text Content
Extract from the online catalog
PST 1,3/ 5-5,0 Order No.: 1933215 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1933215
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 5, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000973 KG
http://
Catalog page information Page 480 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 5 mm Dimension a 20 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PST 1,3,5-5,0 Data Handbook
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 136.82 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum current and voltage rating?
The continuous nominal current (I) is 12 A, and the nominal voltage (U) is 250 V.
Is this device compliant with international standards?
Yes, it holds certifications including CCA, CUL, GOST, SEV, and UL CUL.
Which type of connection is required for assembly?
The product requires soldering for assembly and connects in accordance with the standard EN-VDE.
What are the key physical specifications?
It has a pitch of 5 mm, length of 2.8 mm, dimension 'a' of 20 mm, and 1 pin dimensions of 1.3 mm.
