This robust terminal header connector provides reliable electrical interconnections for industrial applications. The product is designed for seamless incorporation via soldering, featuring a 5mm pitch and varying current/voltage ratings. This manual serves as your comprehensive guide, detailing crucial technical specifications, precise dimensional drawings, installation plans, and derating curves to ensure proper system integration. It is essential reading for electrical engineers, maintenance professionals, and automation designers building reliable electronic circuits.

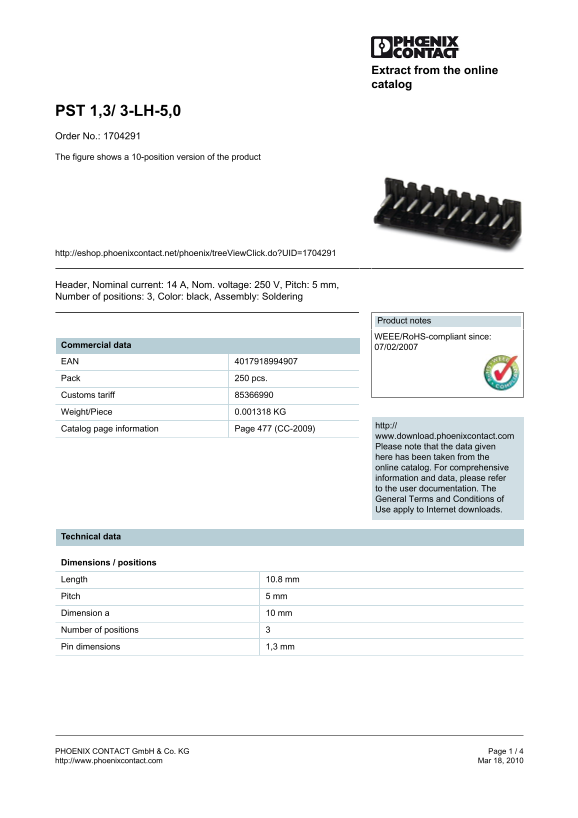

Page 1 Text Content
Extract from the online catalog
PST 1,3/ 3-LH-5,0 Order No.: 1704291 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704291
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.001318 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 10 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PST 1,3 3-LH-5,0 Data Handbook
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 121.32 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the rated voltage and nominal current for this component?
The recommended ratings are U 250 V N / I 13.5 A (depending on the plug used).
Can you tell me how it should be installed?
It is an assembly product designed for soldering.
What kind of insulation material is used?
The insulating material is PA, and it is also marked as Group IIIb.
Are there any safety certifications mentioned?
Yes, the component has CUL and UL certifications. The rated surge voltage (III/2) is 4 kV.
