Phoenix Contact PST 1,3 6-LH-5,0 Order No. 1704369 Data Handbook and Manual
Summary
This technical terminal header is designed for robust electrical connections, featuring soldering assembly, a 5mm pitch, and supporting up to 14 A at 250 V. Ideal for automation engineers and industrial technicians, this component provides reliable performance in demanding environments. The accompanying documentation offers comprehensive details on dimensions, derating curves, drilling plans, and full compliance data (UL/CUL), ensuring correct integration into your electrical system design.
Page 1 Text Content
Extract from the online catalog

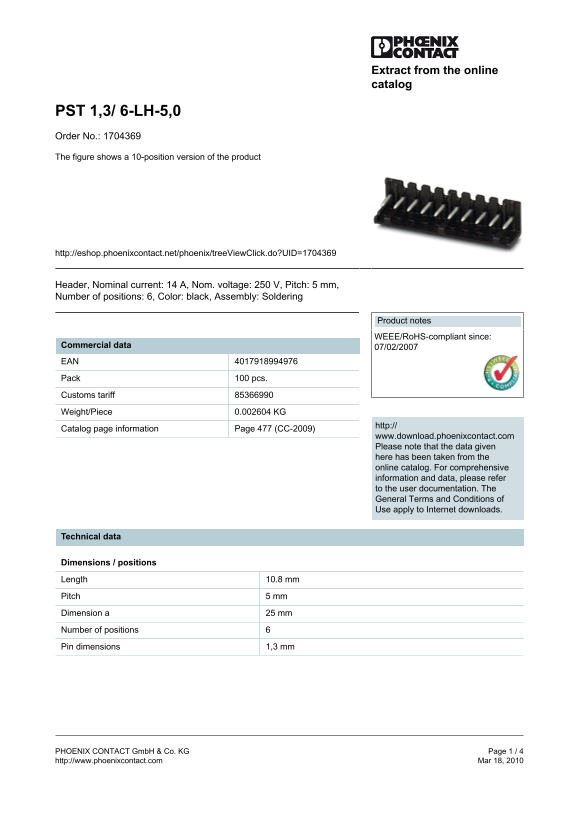

PST 1,3/ 6-LH-5,0 Order No.: 1704369 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704369
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 6, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.002604 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 25 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
