This highly versatile terminal strip connector is designed for robust electrical circuit assembly in demanding industrial environments. Built with compliance features like RoHS/WEEE adherence, this component offers standardized connections (e.g., 14A, 250V) and various configurations. The included technical documentation provides essential data sheets, detailed dimensions, wiring diagrams, and installation guidelines. Ideal for electrical engineers, automation technicians, and industrial manufacturers requiring reliable, professional-grade components for building control panels and machinery.

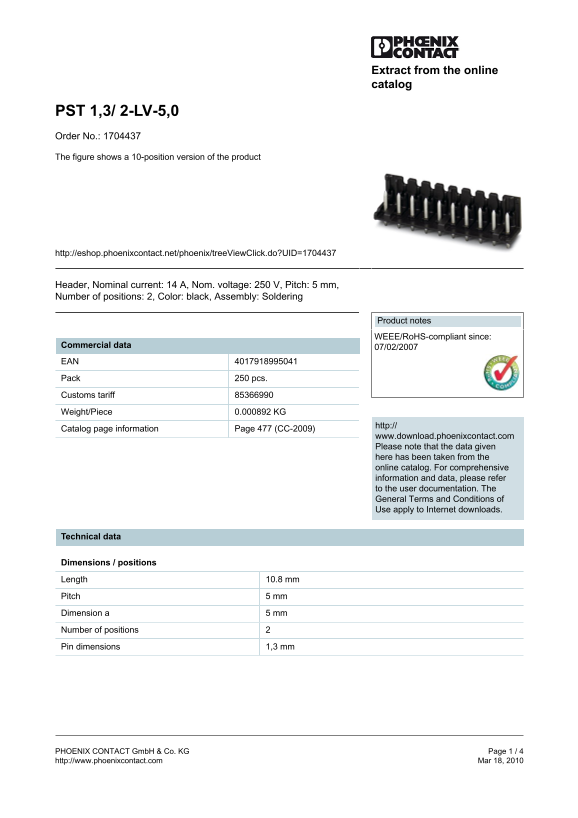

Page 1 Text Content
Extract from the online catalog
PST 1,3/ 2-LV-5,0 Order No.: 1704437 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704437
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 2, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 250 pcs. Customs tariff Weight/Piece 0.000892 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 5 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PST 1,3 2-LV-5,0 Data Handbook
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 103.05 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What pitch spacing does this component have?
The defined pitch for this header is 5 mm.
What connections methods are supported?
This product requires assembly via soldering connection methods.
Does the unit meet modern environmental standards?
Yes, the part is noted as being WEEE/RoHS-compliant.
What is the rated protection voltage for surges?
It has a specified rated surge voltage of 4 kV (for both III/3 and III/2).
