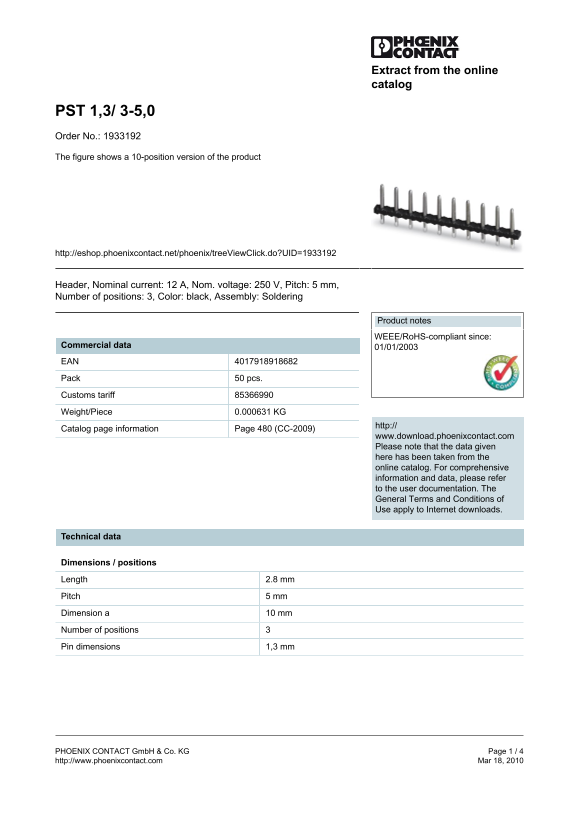

Page 1 Text Content
Extract from the online catalog
PST 1,3/ 3-5,0 Order No.: 1933192 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1933192
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000631 KG
http://
Catalog page information Page 480 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 5 mm Dimension a 10 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PST 1,3 3-5,0 Order No. 1933192 Data Manual - Product Illustration Edition
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 136.79 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current rating for this header?
The nominal voltage (U) is 250 V N, and it has a maximum load current of 12 A depending on the plug used.
How must this component be assembled during installation?
It is designated as a soldering product, requiring proper soldering assembly for connection.
What are the available compliance certifications?
The product holds several certificates including CCA, CUL, GOST, SEV, and UL CUL approvals.
What is the required dimension for drilling?
The specified hole diameter for installation purposes is 1.5 mm.
