Phoenix Contact PST 1,3 2-5,0 Data Sheet Order No. 1933189
Summary
These high-precision, modular electrical connectors provide reliable connectivity for industrial automation and systems integration. Designed with robust specifications, they handle currents up to 12 A and adhere to strict safety standards like RoHS/WEEE compliance. This manual serves as a comprehensive technical resource for engineers and manufacturers, detailing precise dimensional drawings, full electrical ratings (e.g., 400V, 320V), drilling plans, and installation guidelines necessary for flawless product design and implementation.
Page 1 Text Content
Extract from the online catalog

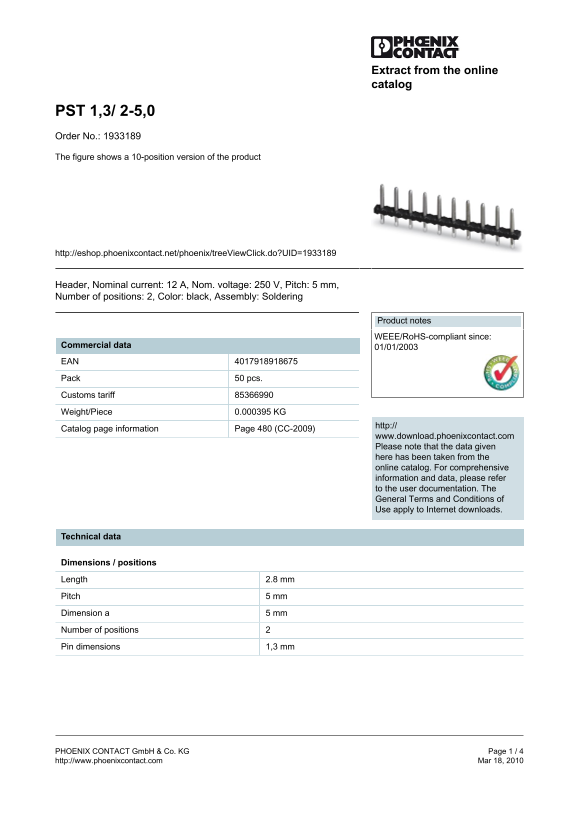

PST 1,3/ 2-5,0 Order No.: 1933189 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1933189
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 2, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000395 KG
http://
Catalog page information Page 480 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 5 mm Dimension a 5 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
