Phoenix Contact - PST 1,3,5-LV-5,0 Data Sheet / Manual
Summary
This robust terminal block header is designed for reliable, soldering-assisted wiring connections in industrial control systems. Rated up to 14A at 250V, it features a standardized pitch of 5 mm and material construction optimized for longevity and safety. The accompanying technical documentation provides comprehensive specifications, including voltage ratings (AC/DC), detailed dimensions, and materials data. It is essential for electrical engineers, automation designers, and technicians who require high-quality components for precise panel building and circuit assembly.
Page 1 Text Content
Extract from the online catalog

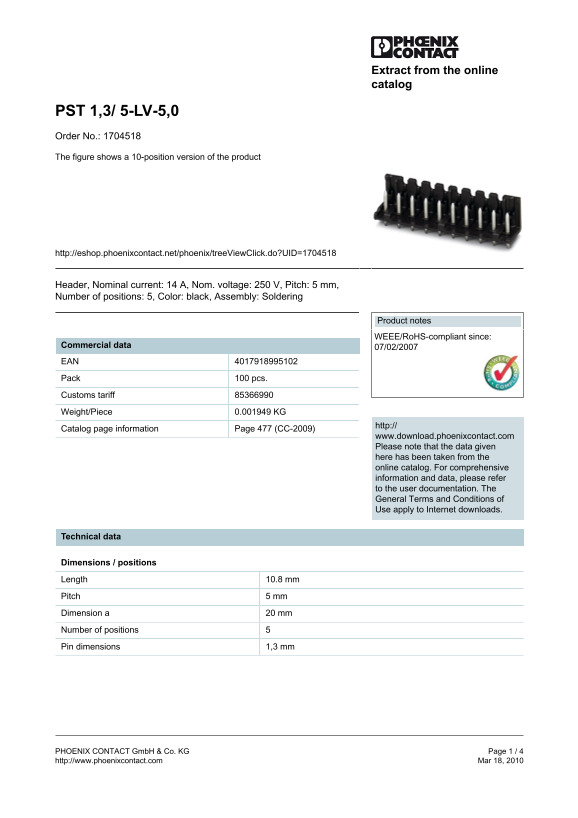

PST 1,3/ 5-LV-5,0 Order No.: 1704518 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1704518
Header, Nominal current: 14 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 5, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/02/2007 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.001949 KG
http://
Catalog page information Page 477 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.8 mm Pitch 5 mm Dimension a 20 mm Number of positions Pin dimensions 1,3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
